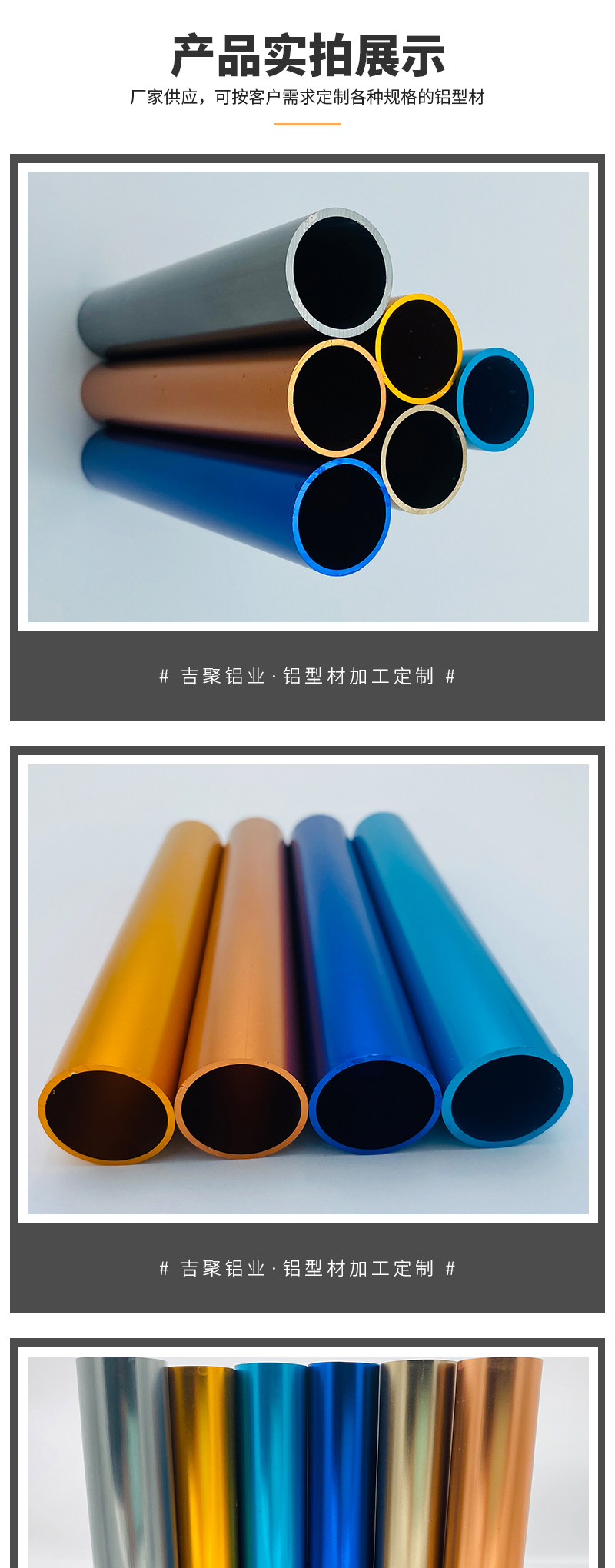

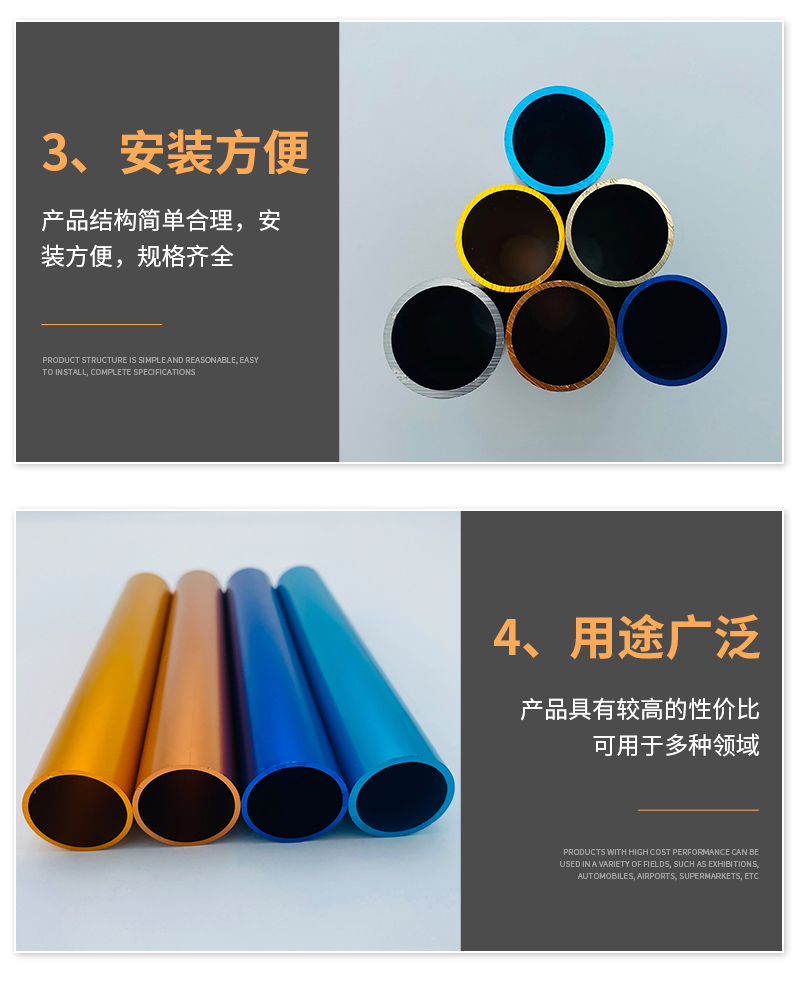

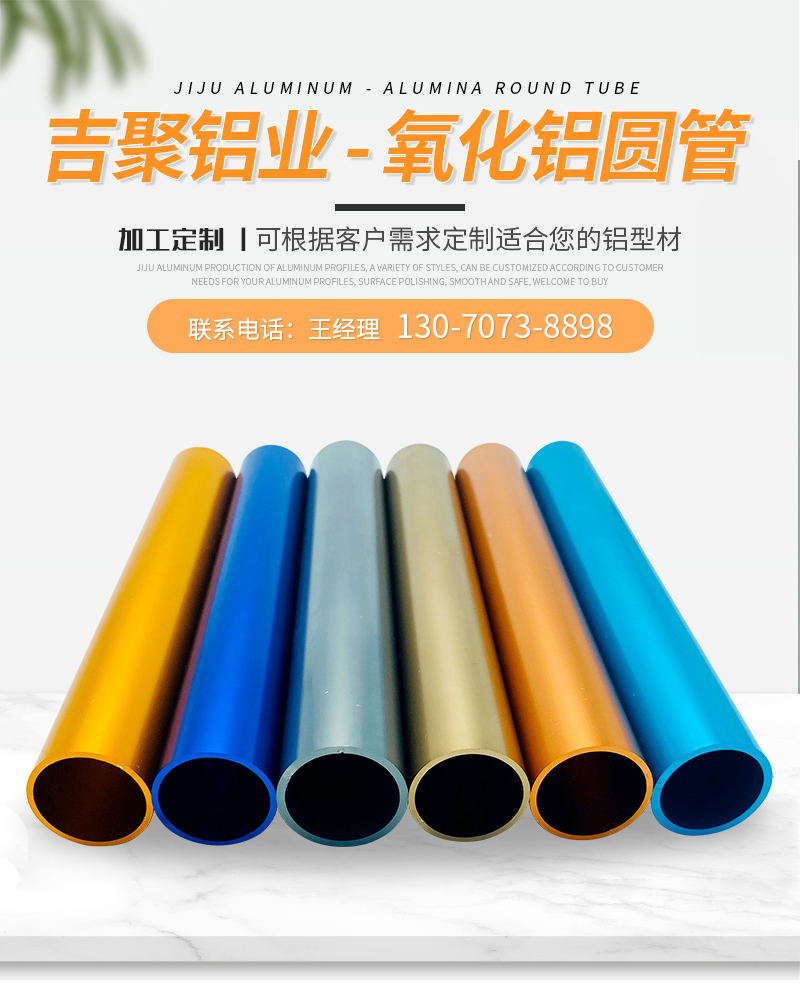

Alumina round tube

Our premium alumina round tubes and anodized aluminum pipes are precision-extruded to deliver outstanding structural integrity and heavy-duty wear resistance. Undergoing a rigorous electrochemical anodizing process, these round profiles feature a hardened protective aluminum oxide surface layer that safeguards the component against corrosion, scratching, and industrial weathering. Engineered with tight geometric tolerances, they are the ideal lightweight, high-strength solution for mechanical conduits, architectural handrails, and advanced framing systems.

Key Specifications & Parameters

Parameter Specification / Options
Product Name Anodized Alumina Round Tubes / Structural Pipes
Material Grade 6063-T5, 6061-T6 Aluminum Alloy
Surface Coating Type Anodizing (Type II Clear/Color or Type III Hardcoat Anodizing)
Anodic Oxide Layer 10 to 25 Microns (Tailored to environmental specifications)
Color Options Natural Clear Anodized, Satin Silver, Matte Black, Champagne, Bronze
Dimensions Available Custom Outer Diameter (OD), Inner Diameter (ID), and Wall Thickness
Deep Processing CNC Precise Turning, Length Miter Cutting, Drilling, Internal Tapping, Deburring
Custom Service OEM/ODM tailored extrusion tooling according to structural drawings

Product Applications

  • Industrial Machinery & Components: Corrosion-resistant pneumatic cylinders, fluid transfer conduits, roller tubes, and lightweight support columns in automation lines.
  • Architectural Framing & Hardware: Upscale modern balustrades, handrails, commercial building glass partition rails, and sleek interior display poles.
  • Outdoor & Sporting Equipment: Heavy-duty telescoping shafts, high-strength tent poles, photography tripod components, and marine-grade protective framing.
  • Automotive & Aerospace Tubing: High-performance lightweight structural link bars, internal fluid lines, and electrical protective routing sleeves.

Product FAQ

Q1: What exactly is an “alumina” round tube in your manufacturing process?

A1: In the context of our architectural and industrial extrusions, an “alumina tube” refers to a premium aluminum alloy round tube that has undergone electrochemical anodization. This specialized process creates a controlled, heavy-duty aluminum oxide layer directly on the surface, drastically increasing its surface hardness and wear resistance compared to raw mill-finish profiles.

Q2: What is the benefit of a thick anodized layer for industrial circular conduits?

A2: A thicker anodized layer (such as 15 to 25 microns) acts as a highly robust barrier coating. It insulates the underlying aluminum alloy from harsh environmental elements, chemical residues, and aggressive moisture, making the tubes exceptional for long-term outdoor deployment or rugged manufacturing machinery frames.

Q3: Can these anodized round tubes be easily bent or formed into custom curved structures?

A3: Because the integrated aluminum oxide layer is extremely hard and ceramic-like, bending a tube *after* anodizing can cause micro-cracking or crazing on the surface. To ensure a flawless visual result, we perform all required precision bending or CNC geometric forming prior to the electrochemical anodizing tank treatment.

Q4: Are the interior walls of the round tube also coated during the anodizing process?

A4: Yes. Anodizing is a immersion liquid bath process. As long as the tube endpoints are completely unobstructed, the chemical solutions pass freely through the interior channel, generating a protective aluminum oxide coating along both the outer and inner walls of the profile simultaneously.
