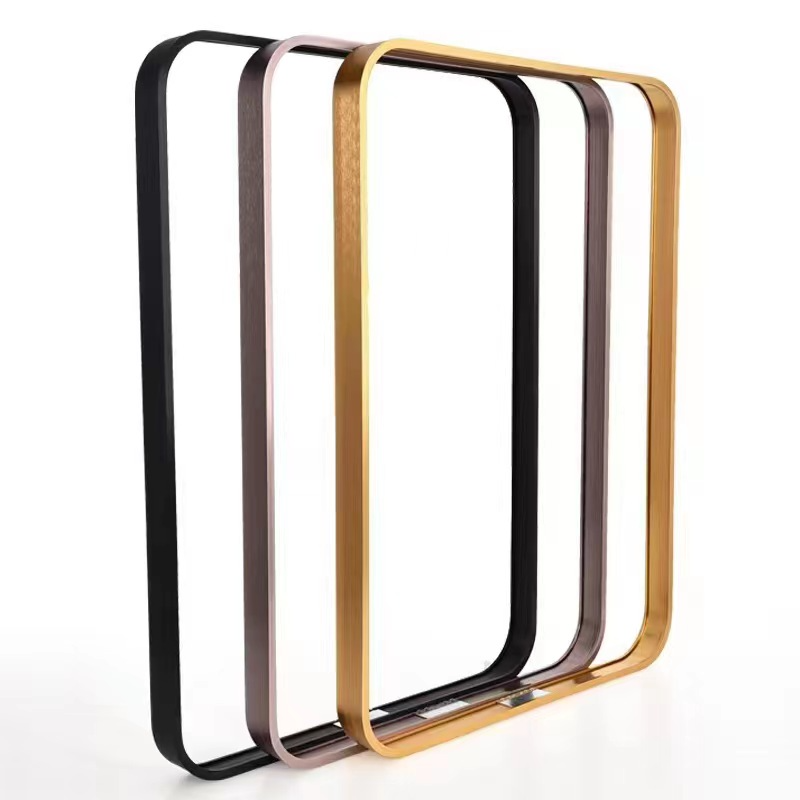

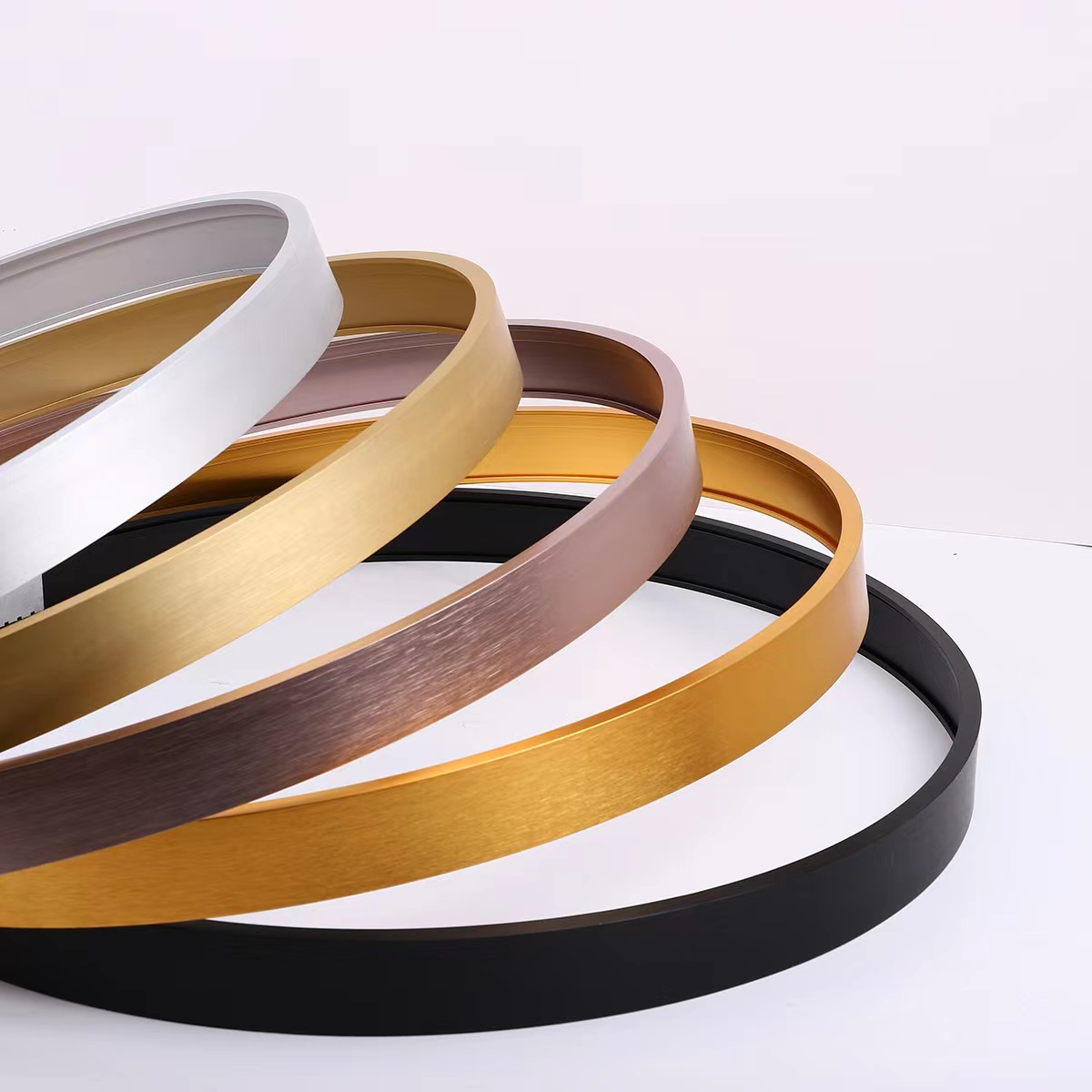

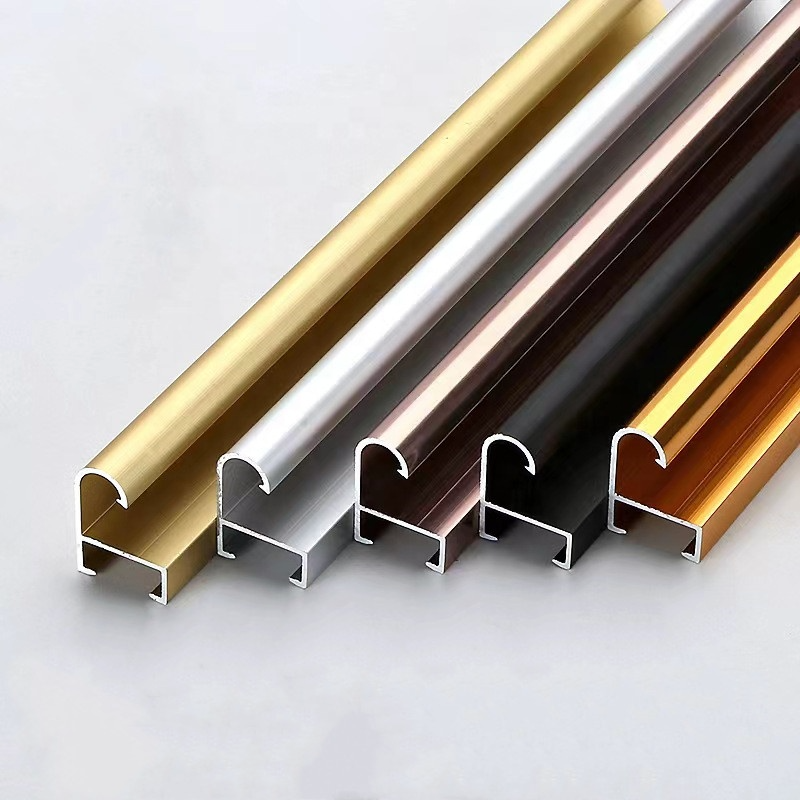

Aluminium Profile for Mirror Frame
Key Specifications & Technical Parameters
| Key Parameter | Specification & Options |
|---|---|
| Product Name | High-Precision Aluminium Profile for Mirror Frame & LED Trims |
| Material Grade Options | 6063-T5, 6463-T6 (Specialized automotive and cosmetic high-brightening alloys) |
| Hardware Coupling | Internal mitered L-cleats, rear support anchor clips, and wall hooks unified in 304 stainless steel |
| Profile Configurations | Ultra-Thin Face Caps, Deep Recessed Light Boxes, Front-Loading Snaps, Floating Shadow Frames |
| Wall Thickness Index | 1.0mm to 2.0mm (Engineered profiles matching glass balance and anti-sag thresholds) |
| Surface Coating Choices | Tri-Acid Mirror Polishing, Satin Matte Anodizing, Fine Bead Sandblasting, AkzoNobel Powder Spraying |
| Color Availability Scope | Polished Bright Silver, Brushed Rose Gold, Velvet Jet Black, Champagne Gold, Matte Charcoal Gray |
| Deep Machining Capability | CNC precise 45° miter saw cutting, internal wire slot pass-through routing, corner lock boring |
Target Product Applications
- Smart Intelligent Bathrooms: Advanced dual-cavity rear-lighting profile enclosures housing power supply blocks, sensor controls, and waterproof LED tape modules safely.
- Full-Height Dressing Mirrors: Rigid thick-walled structural border tracks supporting massive floor-standing bedroom dressing mirrors or commercial fitting room setups.
- Hospitality Interior Decor: Intricate polished gold or chrome architectural frame accents bordering accent glass fields inside luxury hotel elevators and public lobbies.
Comprehensive Technical FAQ
### High Humidity Anti Oxidation Protection
Q1: How do your mirror framing profiles resist corrosion and paint bubbling inside high-moisture bathroom spaces?
A1: Restroom settings accumulate severe steam concentrations and chemical splashes that induce rapid surface pitting and structural oxide peeling on basic unfinished alloys. Therefore, our processing plant channels every custom order through a highly rigorous electrochemical anodizing line to develop an absolute clear ceramic skin measuring 12 to 15 microns. In addition, an intensive high-temperature deionized water sealing wash blocks the porous material crystalline channels permanently. Consequently, the hardened finish prevents moisture penetration to protect your frame cosmetics completely.
### Precise Seamless Hairline Jointing
Q2: What manufacturing controls eliminate prominent corner joint gaps across your slim minimalist mirror moldings?
A2: Microscopic profile twists or sawing angle shifts introduce unsightly corner misalignments that easily distort high-end luxury minimalist installations. Consequently, our factory rejects manual layout setups, instead deploying automated dual-headed CNC miter sawing lines on continuous linear guide rails. This automated tracking maintains precision cutting tolerances within a strict ±0.05-degree threshold. As a result, your workshop assembly teams can use our matching corner bracket keys to achieve seamless hairline junctions instantly.
### Smart LED Light Integration Cavities
Q3: How do your backlit mirror frame extrusions optimize thermal control and light diffusion for flexible LED ribbons?
A3: Trapping high-intensity LED light strips within confined plastic borders creates major heat buildup, accelerating diode degradation and generating uneven lighting patterns across the glass face. Therefore, our multi-functional frames utilize high-conductivity structural aluminum structures to absorb electronic heat and conduct it away instantly. Furthermore, we design specialized dual-channel flanges that accommodate snap-in acrylic diffusion lens plates perfectly. As a result, this single piece yields smooth, dot-free lighting footprints flawlessly.
### Cosmetic High Brightness Metallurgy
Q4: Why do luxury chrome-like mirror borders require specialized 6463-grade aluminum billets instead of standard standard 6063 materials?
A4: True metallic mirror reflectivity depends heavily on eliminating underlying element iron contamination parameters inside the molten core. Standard 6063 manufacturing billets carry relatively high iron metrics to maximize industrial structural strength, which causes a cloudy, milky texture when subjected to chemical brightening chemicals. Therefore, we source premium ultra-pure 6463 billets with iron content strictly limited below 0.15%. Consequently, our extrusion presses create an extraordinarily homogenous base that achieves a true, mirror-like chrome shine after tri-acid processing lines finish.
