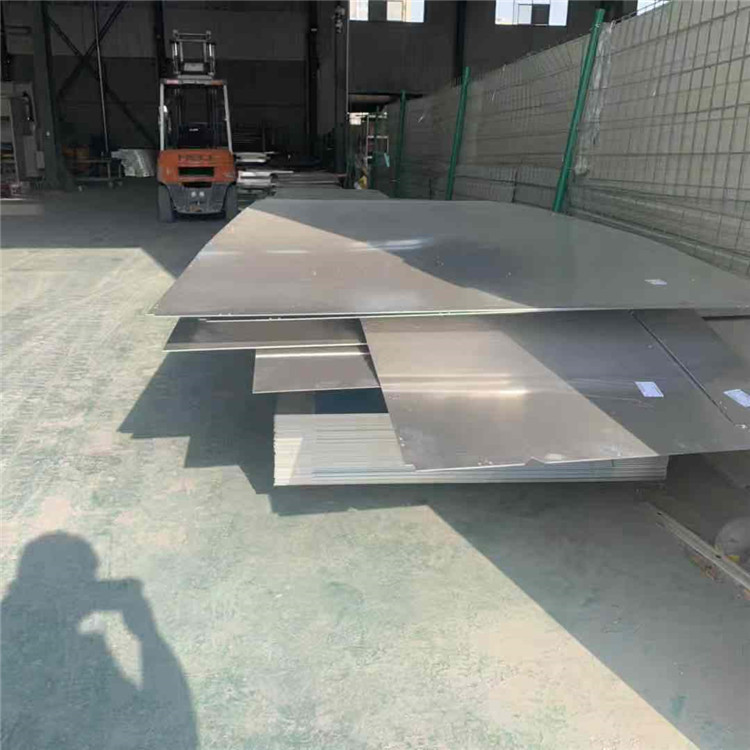

Aluminum plate

Our industrial aluminum plates are engineered to deliver exceptional flatness, superior structural strength, and outstanding machinability for heavy-duty applications. Manufactured from premium-grade aluminum alloys, these plates offer remarkable resistance to corrosion and structural fatigue under high stress. Available in a wide range of custom thicknesses, precise cut-to-size dimensions, and versatile surface treatments such as mill finish, brushing, or anodizing, they provide an ideal, reliable material solution for global manufacturing and precision engineering sectors.

Key Specifications & Parameters

Parameter Specification / Options
Product Name Industrial-Grade Aluminum Plate / Sheet Stock
Material Grade 1000, 3000, 5000, 6000, 7000 Series (e.g., 6061-T6, 5052-H32)
Thickness Range 6.0mm – 200mm+ (Heavy plates and precision blanks supported)
Surface Treatment Mill Finish, Clear/Color Anodized, Fine Brushing, Tread Checked, PVC Protection Film
Flatness Tolerance High precision standard (Custom tight tolerances available upon request)
Width & Length Standard widths (1000/1220/1500mm) or custom water-jet/laser cut dimensions
Deep Processing CNC Precise Milling, Water-jet/Laser Cutting, Hole Drilling, Chamfering
Custom Service OEM/ODM tailored alloy sourcing and precise thickness sawing services

Product Applications

  • Aerospace & Automotive Engineering: High-strength lightweight structural frames, aircraft skins, vehicle chassis parts, and EV battery enclosures.
  • Industrial Machinery & Tooling Molds: Precision machined fixture plates, indexing tables, injection molds, and base components for automation assembly equipment.
  • Marine & Shipbuilding Structures: Highly corrosion-resistant hulls, decks, and marine tank bulkheads utilizing marine-grade 5000 or 6000 series plates.
  • Construction & Architectural Facades: Rigid exterior wall cladding panels, modern protective barriers, decorative metal signage, and industrial flooring.

Product FAQ

Q1: What are the main differences between 5000 and 6000 series aluminum plates?

A1: 5000 series plates (like 5052) are alloyed primarily with magnesium, offering excellent corrosion resistance, superior weldability, and moderate strength, making them ideal for marine or chemical environments. 6000 series plates (like 6061) are alloyed with silicon and magnesium, are heat-treatable, and offer much higher yield strength along with excellent CNC machining characteristics.

Q2: Can you ensure high flatness and minimal internal stress for precision machining blanks?

A2: Yes. For high-end tooling and indexing plate applications, we provide specialized stress-relieved plates (such as 6061-T651). These blanks undergo stretching and precision leveling processes after heat treatment to eliminate internal stresses, ensuring the material will not warp or twist during intensive CNC milling.

Q3: What cutting methods do you use to supply precise cut-to-size blanks?

A3: Depending on your exact thickness, tolerance, and edge finish requirements, we offer precise high-speed circular sawing, water-jet cutting (best for heat-sensitive specs), or CNC laser cutting to deliver near-net shapes ready for immediate factory fabrication.

Q4: How do you prevent surface scratching on thick aluminum plates during shipping?

A4: Maintaining surface quality is standard procedure. We can apply heavy-duty protective PE or PVC film on one or both sides of the plate upon request. For global B2B transit, plates are securely interleaved with wood elements, banded with strong steel straps, and anchored onto heavy-duty wooden pallets to prevent moving or friction marks.
