LEADING CUSTOM ALUMINUMEXTRUSION MANUFACTURER
From mold design to precision CNC machining and surface treatment.
Providing one-stop aluminum profile solutions with 30 years of industry expertise.

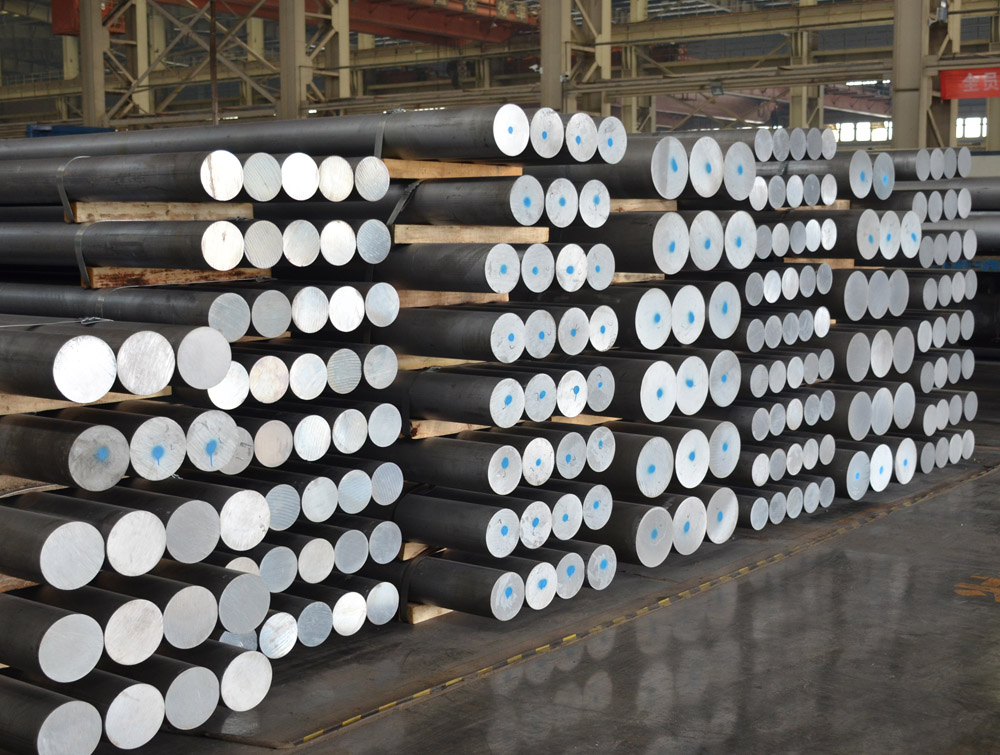

Aluminum rod
Key Specifications & Parameters
| Parameter | Specification / Options |
|---|---|
| Product Name | Industrial Extruded Aluminum Rod / Solid Round Bar |
| Material Grade | 6061-T6, 6063-T5, 6082-T6 (High machinability structural alloys) |
| Diameter Range | Customizable diameters from small pins to heavy-duty structural bars |
| Diameter Tolerance | Up to ±0.05 mm (Strict compliance with international engineering metrics) |
| Straightness Precision | Controlled straightness deviation per meter for optimal bar feeding |
| Surface Treatment | Mill Finish, Anodizing (Clear, Black, Color), Mechanical Brushing |
| Deep Processing | Precision Cut-to-length, Chamfering, CNC Turning, Centerless Grinding |
| Custom Service | OEM/ODM custom alloy ratios and dimension profiles to drawing specs |
Product Applications
- High-Speed CNC Machining Feedstock: Ideal solid raw material processed by automatic lathes into custom fasteners, screws, bolts, bushings, and precision rivets.
- Mechanical Components & Drive Shafts: Lightweight structural shafts, internal link rods, positioning pins, and heavy-duty structural struts inside automation machinery.
- Automotive & Aerospace Hardware: Critical weight-saving chassis parts, fluid sensor adapters, engine fittings, and aircraft interior structural support links.
- Electrical & Marine Engineering: Premium anti-corrosion conductor bars, connector blocks, and durable marine-grade shafts utilizing specific 6000-series grades.
Product FAQ
Q1: Which aluminum alloy grade should I select between 6061 and 6063 for solid bars?
A1: If your application demands superior mechanical yield strength, heavy load capabilities, and excellent precision CNC chipping properties, 6061-T6 is highly recommended. However, if you require a smoother surface finish, higher anodizing responsiveness, or are designing decorative/complex profiles, 6063 alloy provides the best architectural performance balance.
Q2: Why is straightness control critical for aluminum solid round bars?
A2: High straightness precision is critical for automatic lathe systems. If a solid bar possesses even minor curvature, it can trigger severe vibrations during high-speed rotation, causing tooling wear and dimensional inaccuracies. We apply post-extrusion precision straightening processes to eliminate internal stresses and ensure seamless automated feeding.
Q3: Do you offer chamfering and precision cutting services for bulk bar orders?
A3: Yes, absolutely. We provide full deep-processing custom services. We can deliver aluminum rods cut to exact custom short lengths with clean, deburred end faces or specialized 30/45-degree chamfering to facilitate immediate automatic reloading on your factory production lines.
Q4: What surface treatments can be applied to solid extruded aluminum rods?
A4: We support a diverse array of finishes. For standard raw manufacturing feedstocks, mill finish is typical. For visible consumer hardware or components requiring increased surface hardness and corrosion isolation, we offer clear, black, or custom color anodization layers configured to your target environment requirements.
Precision Aluminum Manufacturing & Custom OEM/ODM Services
Expert in Aluminum Extrusion, Deep Processing, and Finished Products.
