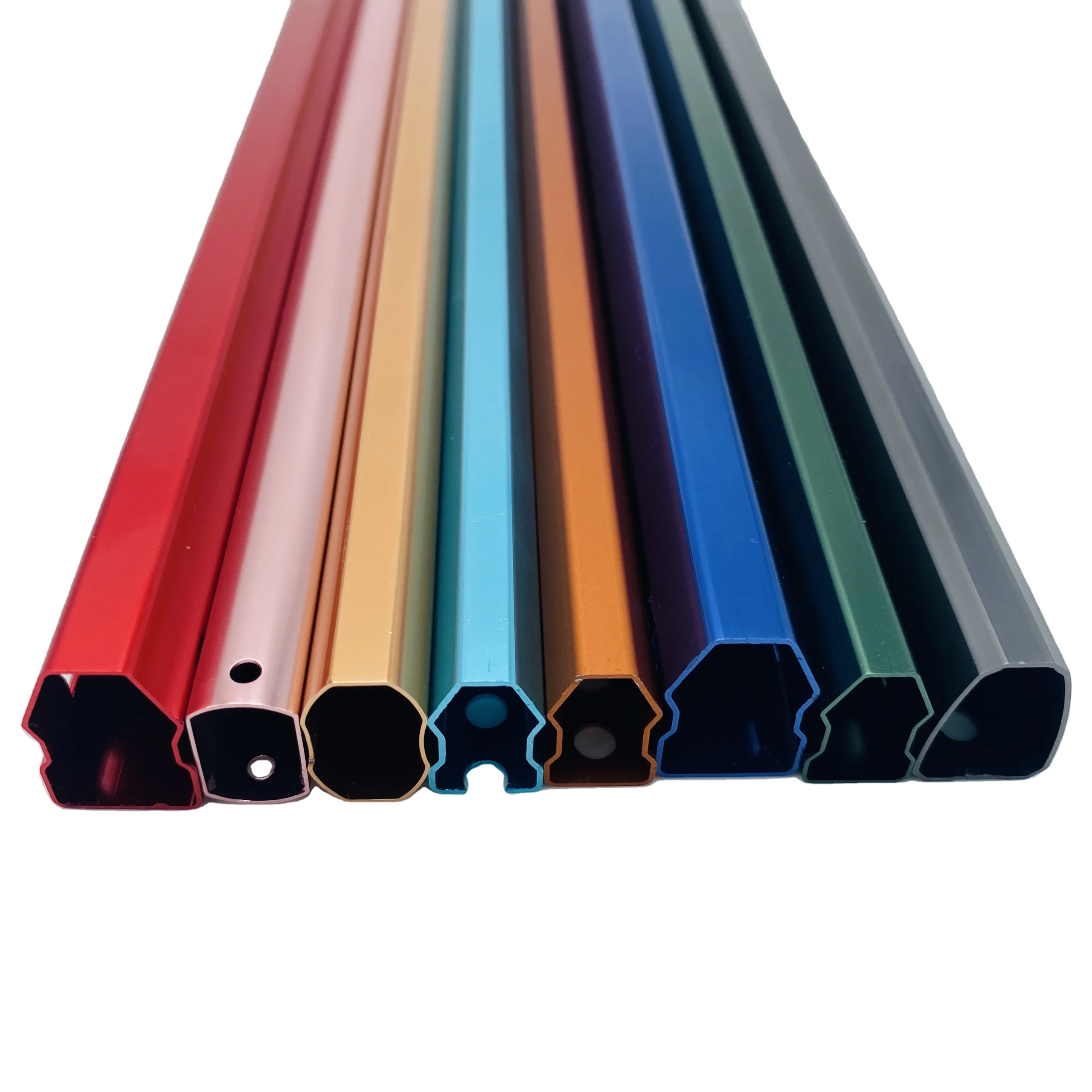

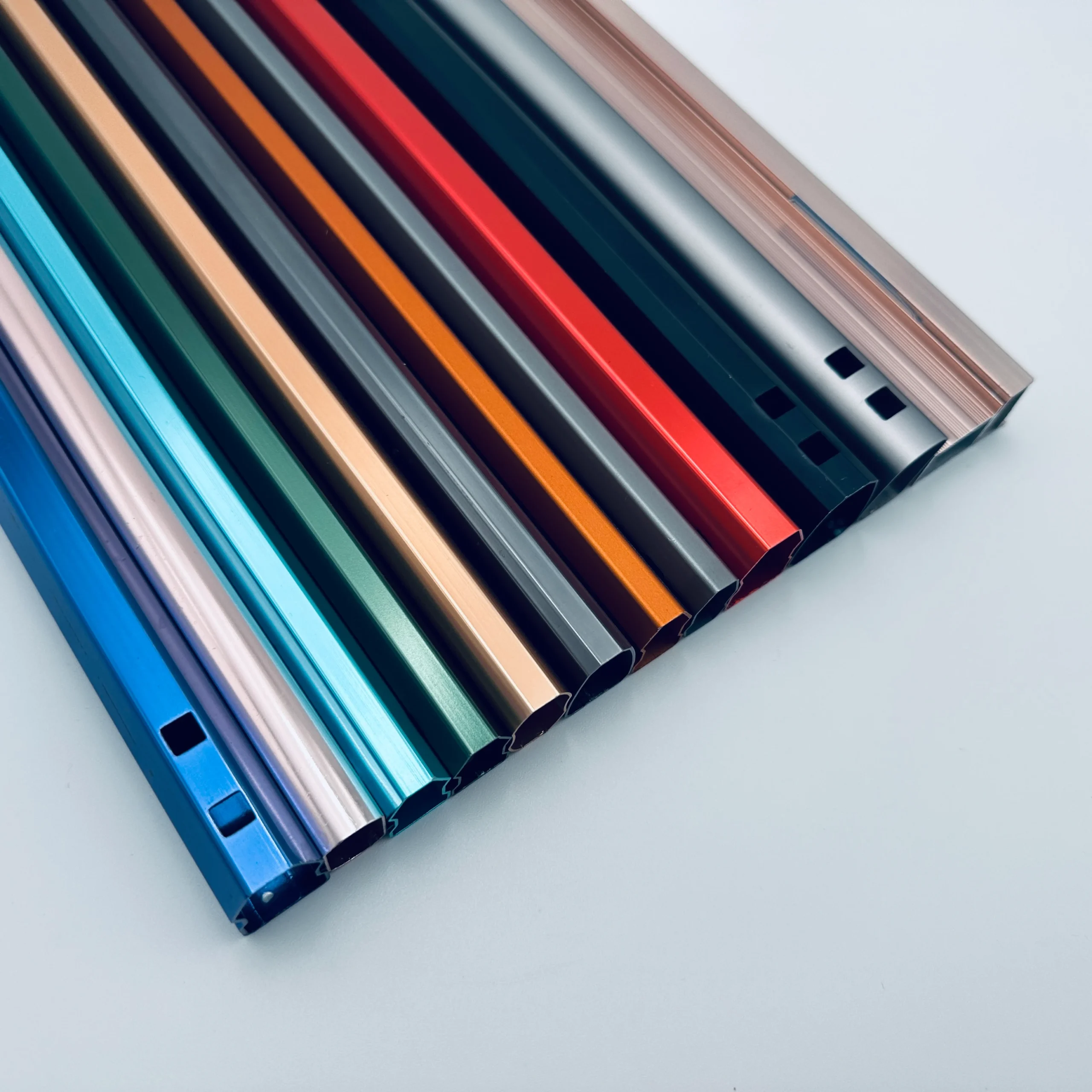

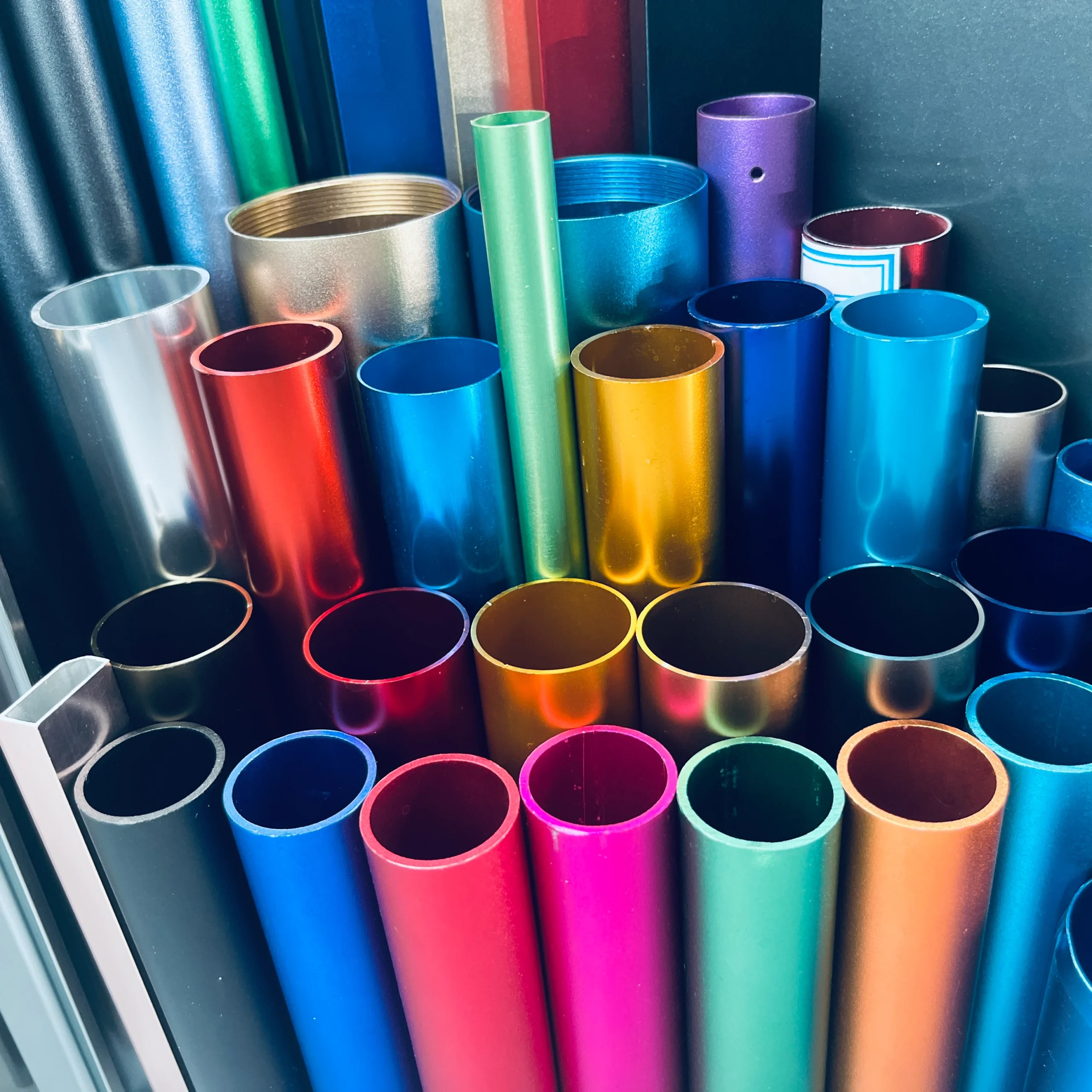

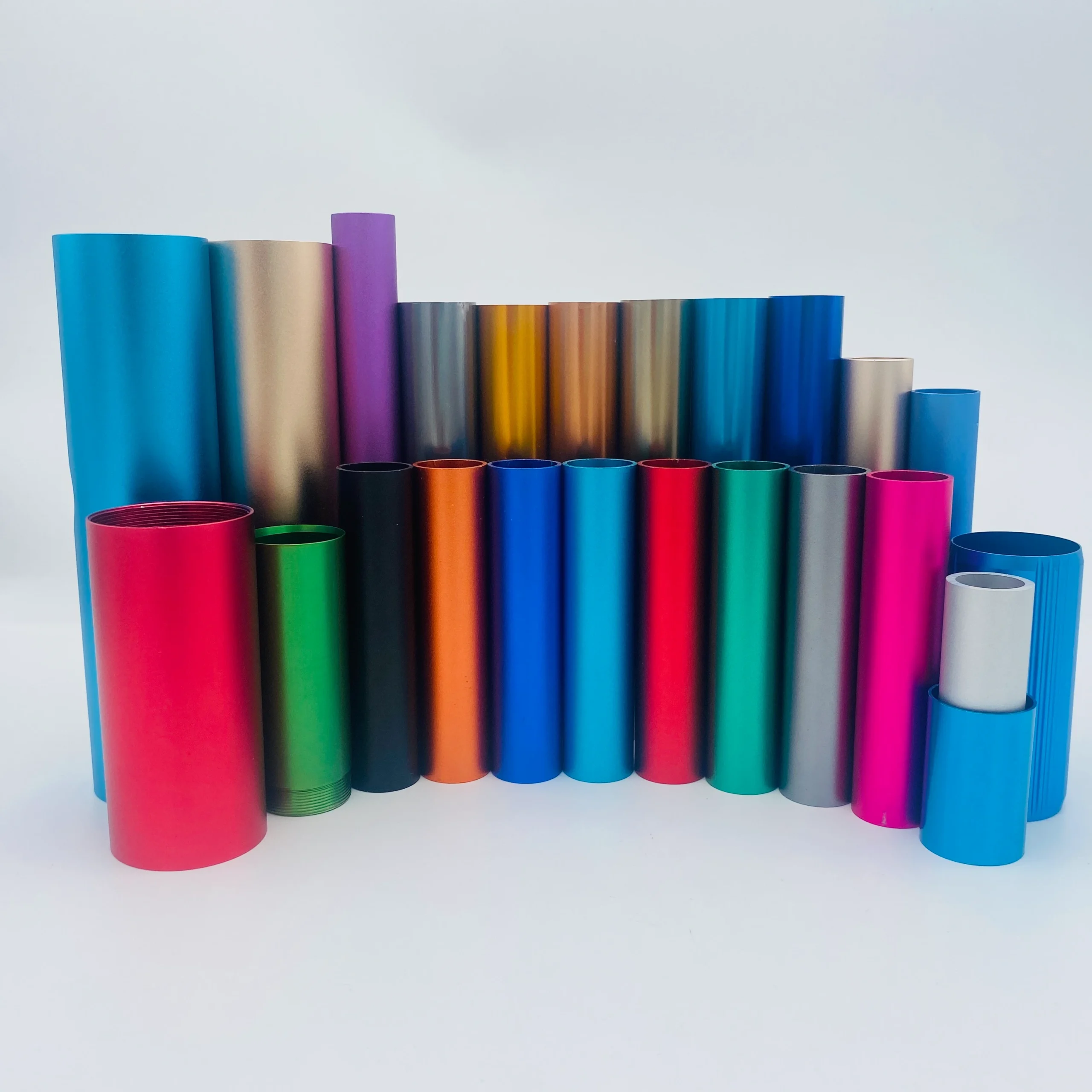

Anodized Aluminium Extrusion Profiles
Key Specifications & Technical Parameters
| Key Parameter | Specification & Options |
|---|---|
| Product Name | Anodized Aluminium Extrusion Profiles / Oxidized Structural Sections |
| Material Grade Options | 6063-T5, 6063-T6, 6061-T6, 6082-T6 (High-precision structural engineering alloys) |
| Hardware Coupling | Alignment dowels, joint cleats, anchor brackets, and internal assembly fasteners unified in 304 stainless steel |
| Anodizing Film Depth | Class AA10 (≥10um), Class AA15 (≥15um), up to Hardcoat Type III (≥50um) for extreme wear resistance |
| Wall Thickness Scope | 0.8mm to 12.0mm (Engineered profiles matching localized dynamic weight constraints) |
| Surface Sheen Formats | Satin Matte Finish, Mechanical Brushed Hairline, Fine Bead Blasted Finish, Glossy Bright Polished |
| Color Availability Scope | Natural Clear Silver, Velvet Jet Black, Champagne Gold, Bronze Tone, Dark Charcoal Gray |
| Deep Machining Capability | CNC precise length sawing, structural notch routing, component boring, internal thread tapping |
Target Product Applications
- Industrial Plant Automation: Heavy-gauge T-slot framing tracks, linear guide rail support bases, pneumatic cylinder manifolds, and robotic enclosure cages.
- Architectural Facade Enclosures: Exterior structural curtain wall mullions, window trim profiles, shopfront glazing tracks, and suspended linear ceiling grids.
- Electronic Thermal Management: High-density flanged heat-sink blocks, solar inverter mounting rails, consumer electronics chassis box plates, and server trays.
Comprehensive Technical FAQ
### Electrochemical Oxide Protective Layer Principles
Q1: How does the electrochemical anodizing process protect extruded aluminum profiles against physical wear and scratch impacts?
A1: Raw extruded aluminum possesses a soft metallic outer skin that scratches easily under handling stresses and develops spotty natural corrosion layers over time. Therefore, our processing plant immerses cleaned profiles into specialized sulfuric acid electrolyte tanks under precise electrical currents. This process drives a controlled oxidation reaction that grows an exceptionally hard, integrated aluminum oxide layer directly out of the metal matrix. Consequently, this sapphire-hard transparent finish shields the underlying component against aggressive physical scrapes flawlessly.
### High Temperature Deionized Water Sealing
Q2: What operational role does the secondary high-temperature deionized water sealing step accomplish after acid baths finish?
A2: Freshly grown anodized oxide structures carry millions of microscopic, open honeycomb pores that trap airborne moisture and chemical contaminants easily if left raw. Consequently, these unsealed cavities cause rapid surface dulling or prominent filiform corrosion pathways to corrupt the metal finish. To block this vulnerability, our surface facility paths profiles through continuous near-boiling deionized water sealing washes. This intense thermal step hydrates the oxide matrix, expanding the cell structures to close the porous channels permanently.
### Batch Color Uniformity Management
Q3: How do your automated line sensors control color matching and gloss consistency across heavy high-volume profile orders?
A3: Slight fluctuations in chemical tank temperatures, acid concentrations, or current densities will trigger prominent gloss shifts and patchy shades across bulk orders. Therefore, our automated line employs computerized monitoring units to stabilize electrolyte metrics within microscopic tolerances continuously. Furthermore, we extract all custom batches from identical alloy billet sequences to ensure a unified chemical base. Consequently, our color tracking tools guarantee absolute aesthetic harmony across your full structural installation layout.
### Post Oxidation Deep Machining Protocols
Q4: Can you execute secondary cutting, hole drilling, and thread tapping on pre-anodized profiles without chipping the edges?
A4: Brittle or poorly bonded oxide layers chip and fracture easily under high-speed milling cutter impacts, ruining tight tolerances along component margins. Therefore, our precise chemical parameters optimize coating elasticity boundaries to yield excellent physical resilience during secondary adjustments. Our long-bed CNC machining centers cut crisp 45-degree angles, drill aligned mounting holes, and route deep structural notches cleanly with zero edge flaking risks.
