### Post-Weld Stress Relief Techniques
Q1: How do you eliminate geometric distortions and internal residual stresses inside large welded aluminum profiles?
A1: Intense localized heat during TIG or MIG welding creates inevitable micro-structural thermal contractions. Therefore, our engineering department schedules a dedicated thermal aging or vibratory stress-relief treatment immediately following welding runs. Subsequently, this conditioning stabilizes the metallurgical grain boundaries before any cutting tools touch the metal. Consequently, the structural profiles maintain lifelong dimensional flatness without risking post-assembly bowing.
### Precision Machining Interventions
Q2: Why is multi-axis CNC machining mandatory for welded frameworks instead of utilizing pre-cut parts?
A2: Pre-machined components lose their alignment parameters because the welding puddle pulls the profile walls out of square during solidification. For instance, joint gaps can expand or motor mounts shift away from target axes. Therefore, we utilize massive long-bed CNC machining centers to re-mill critical faces and bore mounting patterns post-welding. As a result, this process guarantees absolute co-axial tracking across complex multi-profile links.
### Advanced Surface Processing Sequencings
Q3: What parameters govern your sandblasting and electrochemical oxidation sequence to mask weld seam discolorations?

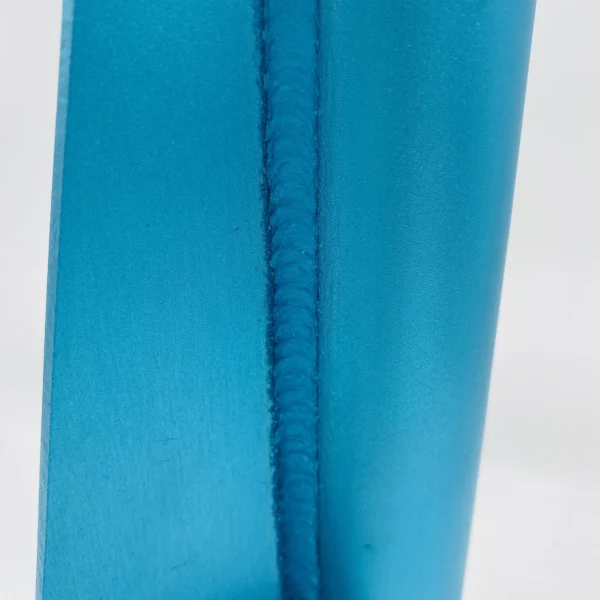

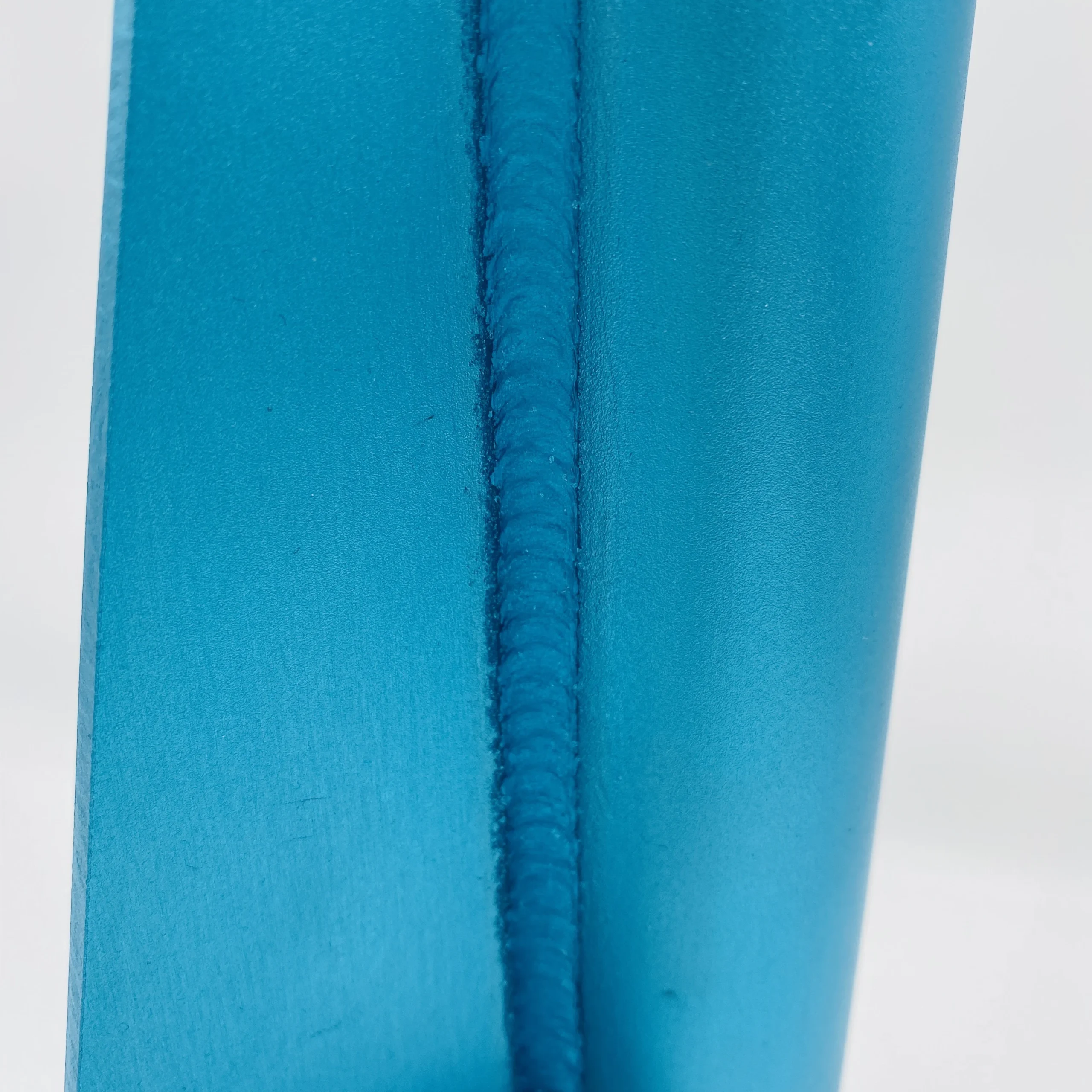

A3: Direct anodizing on raw weldments exposes severe aesthetic flaws due to the different alloy compositions of the profile and filling wires. Consequently, our surface line executes an intensive sandblasting step using calibrated #120 glass media to texture the metal skin uniformly. Furthermore, chemical oxidation grows an integrated protective layer over the balanced topography. Consequently, this treatment conceals the weld heat-affected zone completely.
### QA Monitoring & Verification Metrics
Q4: How does your quality control lab verify weld penetration depth and final CNC dimensional tolerances?
A4: Structural weld integrity under extreme loading represents a paramount safety requirement for heavy engineering frameworks. Therefore, inspectors carry out non-destructive ultrasonic or dye-penetrant testing to confirm internal joint fusion. In addition, our coordinate measuring machines (CMM) analyze post-machined plane parameters. As a result, this tracking confirms your order matches your blueprint limits perfectly.
