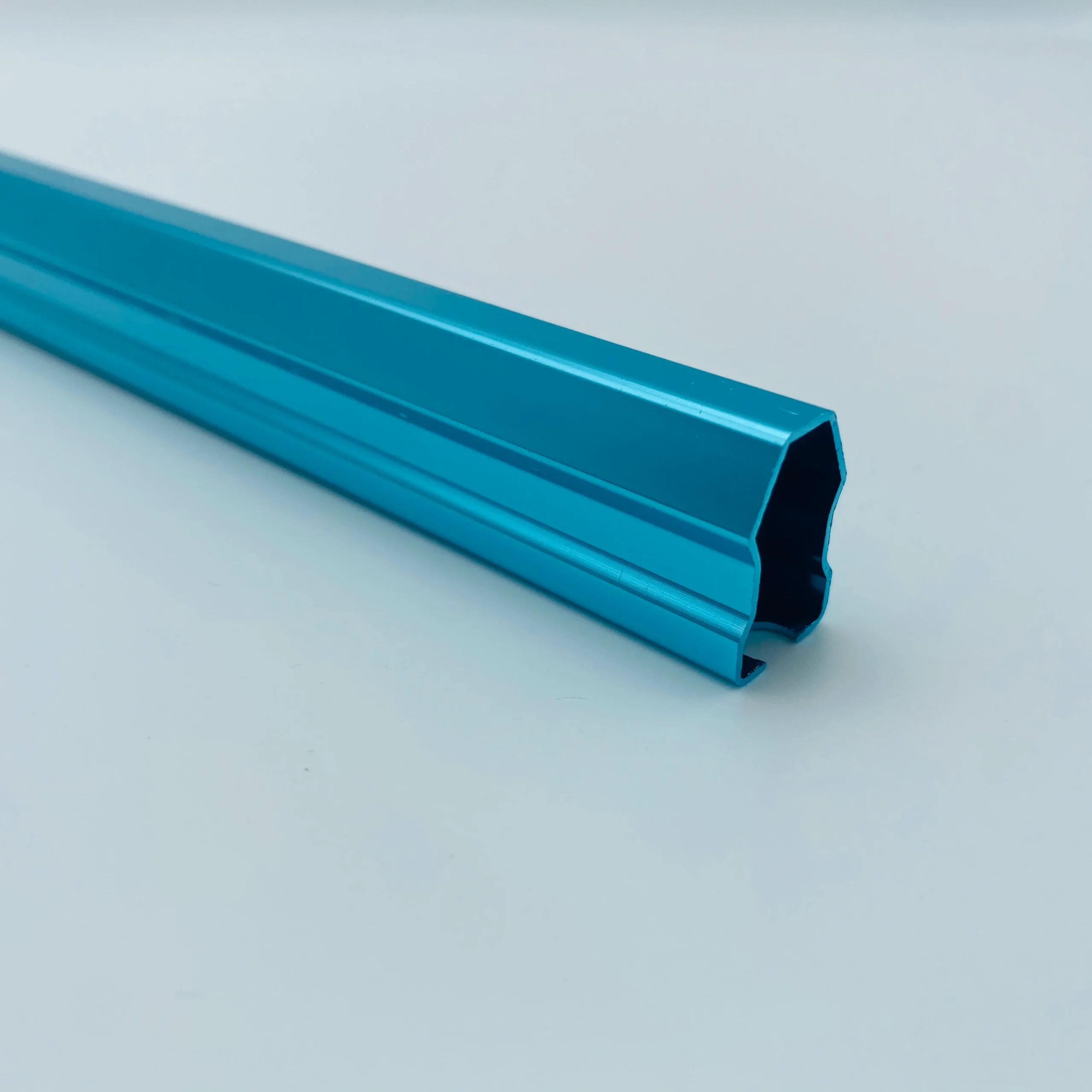

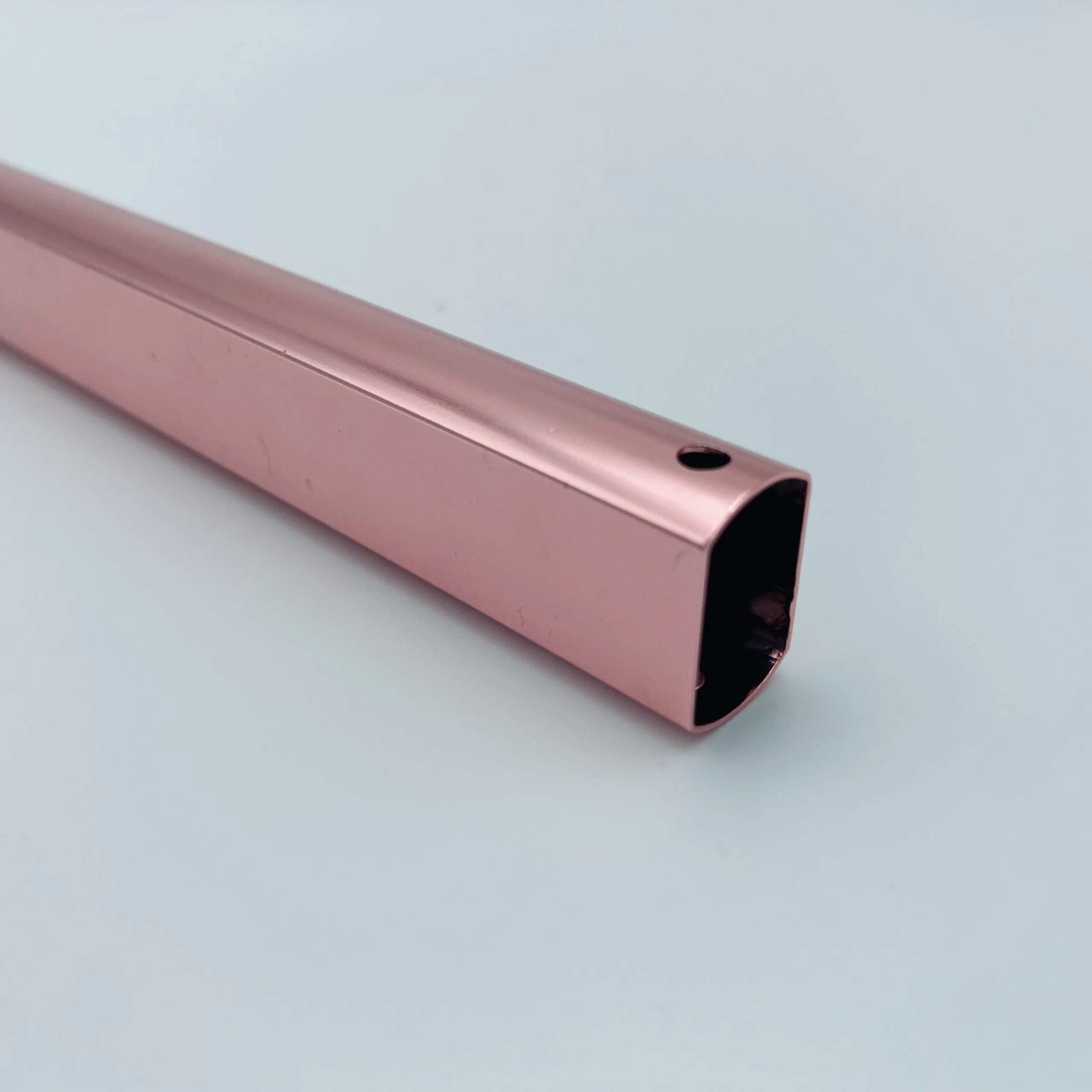

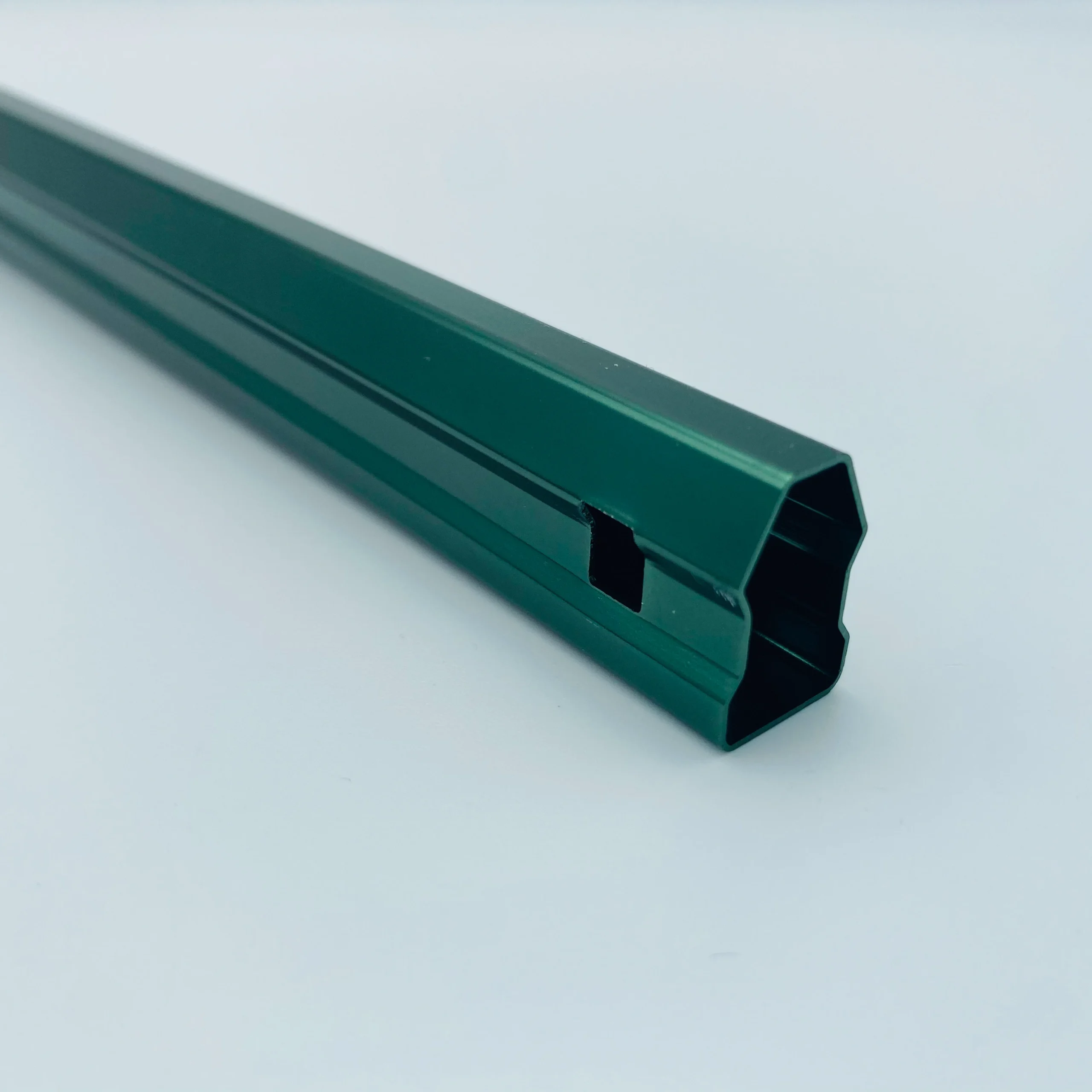

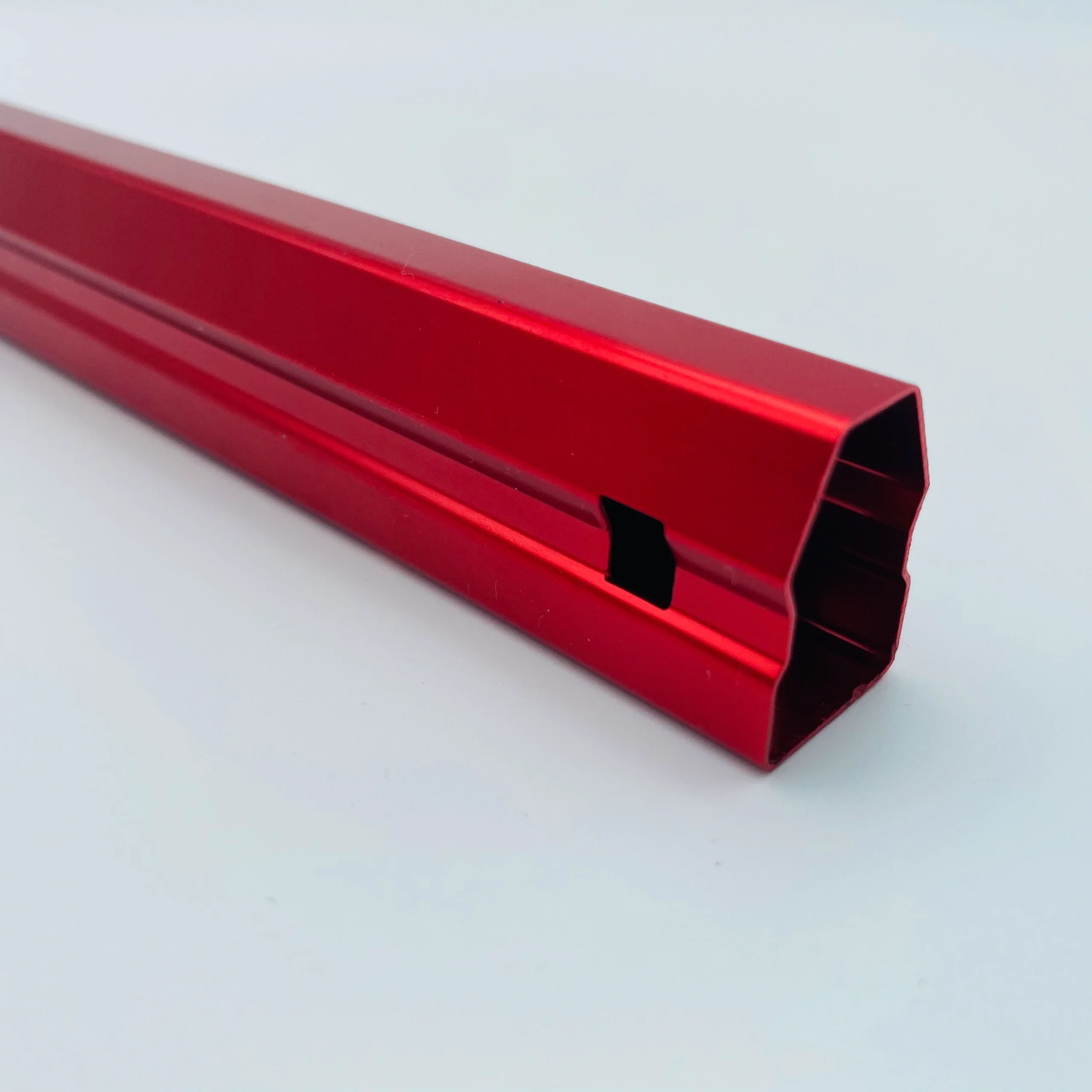

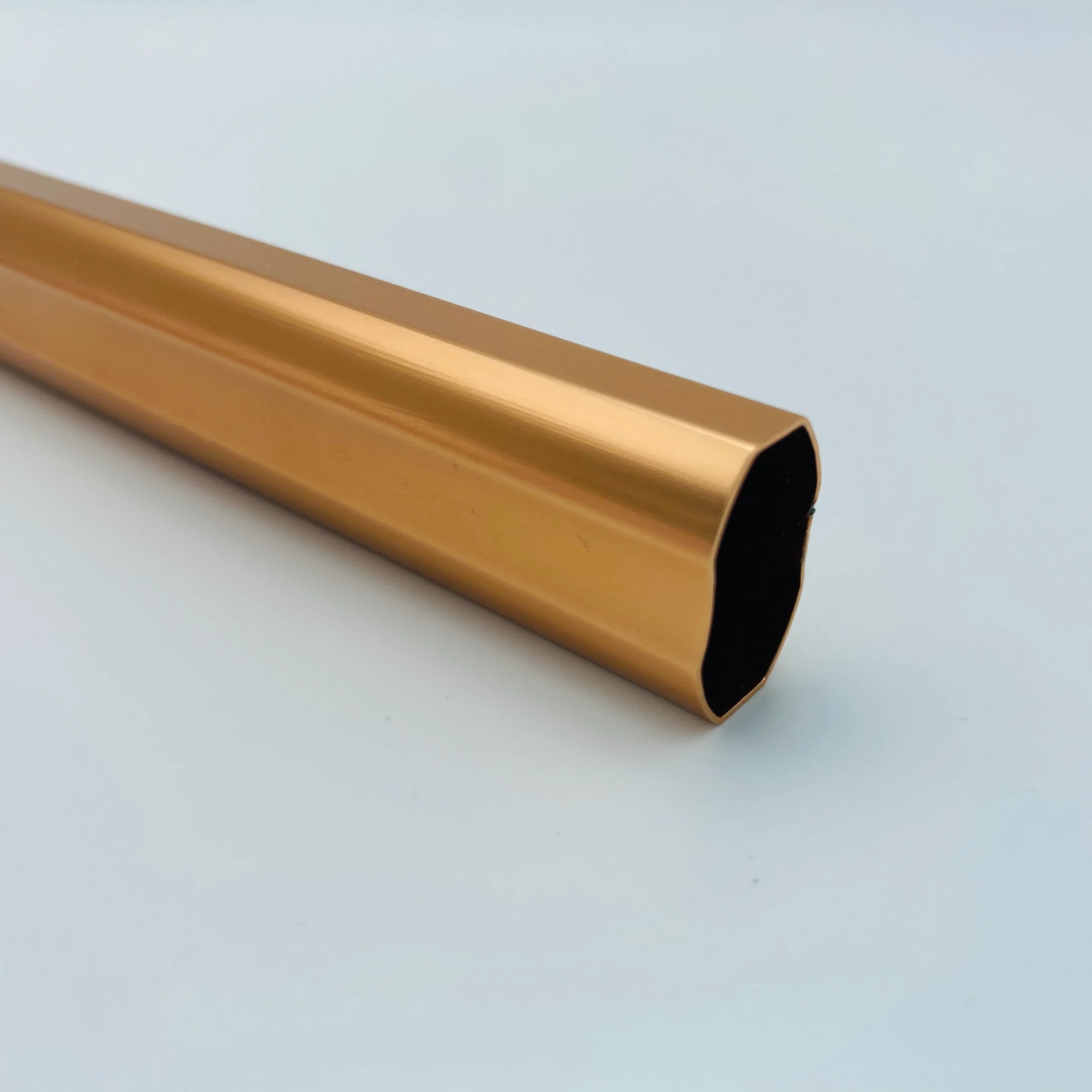

Colour Anodized Aluminium Extrusion Profiles

Our professional Colour Anodized Aluminium Extrusion Profiles and decorative structural channels deliver exceptional surface hardness and remarkable color depth across high-end architectural and electronic consumer frameworks. Premium 6000-series structural alloys ensure maximum metallurgical stability and excellent finish uniformity over extended processing lines. Furthermore, advanced electrochemical anodizing lines integrate metallic dyes straight into the porous ceramic layer of the aluminum substrate. Consequently, these vibrantly finished structural sections completely eliminate the risk of surface chipping and peeling during intensive field application cycles.

Key Specifications & Technical Parameters

Key Parameter Specification & Options
Product Name Colour Anodized Aluminium Extrusion Profiles & Sections
Material Grade 6063-T5, 6063-T6, 6061-T6 (High-precision architectural and structural alloys)
Hardware Coupling Standard mounting plates, bracket kits, and alignment screws unified in 304 stainless steel
Color Options Satin Champagne, Rich Bronze, Jet Black, Royal Gold, Titanium Silver, Crimson Red, Navy Blue
Layer Thickness Scope Class AA10 (≥10um) to Class AA25 (≥25um) matching strict international building codes
Surface Gloss Spectrum Mechanical Sandblasted Matte Finish, Chemical Bright Dipped Mirror Sheen, Linear Hairline Brushed Texture
Dimensional Tolerance Strict compliance with high-precision global metrics (tolerances held up to ±0.15mm)
Deep Machining Capability CNC long-bed saw cutting, interlocking slot routing, precision boring, internal thread tapping

Target Product Applications

  • Premium Architectural Facades: Luxury interior partition frames, exterior structural curtain wall mullions, ceiling baffle grids, and designer louver slats.
  • Electronic Device Enclosures: High-end heat sink plates, communication server chassis trims, automated optical instrument housings, and high-tech consumer panels.
  • Automated Smart Workstations: Color-coded industrial packing tracks, cleanroom modular structural framing setups, and precision linear rail enclosures.

Comprehensive Technical FAQ

### Electrochemical Coloring Mechanisms Detailed

Q1: How does electrochemical anodizing lock vibrant color metallic pigments directly into aluminum profiles?

A1: Standard commercial paint layers rest loosely on top of metal substrates, leaving them vulnerable to blistering. Therefore, our processing line subjects raw aluminum sections to controlled sulfuric acid baths to cultivate an integrated microscopic porous oxide matrix. Subsequently, an electrochemical dye process precipitates metallic salt deposits deep inside these individual vertical hexagonal pores. Finally, intensive hot-water hydration sealing locks the pigmentation permanently inside a sapphire-hard transparent defensive skin.

### Color Consistency Over Bulk Batches

Q2: What production standards eliminate subtle color variation errors across massive high-volume volume orders?

A2: Minor shifts in chemical solution temperature, current density parameters, or alloy grain boundaries will induce visible tint gradients. Consequently, our automated chemical plant strictly maintains tank temperatures within a tight ±0.5°C margin. Furthermore, we extract all profiles for a specific project from identical aluminum billet batches to maintain a unified zinc-magnesium trace ratio. Consequently, our computerized optical spectrometers confirm uniform color uniformity matching your master sample codes.

### Atmospheric Stability & Chalking Controls

Q3: How well do colored anodized structural sections resist harsh ultraviolet radiation and chalking indicators over time?

A3: Extreme outdoor solar exposure will rapidly degrade low-grade organic powder paints, turning dark hues into faded, chalky surfaces. Therefore, our exterior architectural profiles feature inorganic metallic pigments that exhibit absolute immunity to intensive UV photo-degradation. This robust electrochemical structure preserves its rich bronze or charcoal depth across decades of continuous exposure. As a result, commercial building developers bypass high-cost cyclical cleaning schedules entirely.

### Post Treatment Downstream Processing Compatibility

Q4: Can your facility supply colored profiles pre-machined and tapped without causing micro-cracks along the anodized edges?

A4: Manual workshop processing after color integration easily mars pristine decorative faces with sharp chips or tool gouges. Therefore, we highly recommend scheduling bulk CNC sawing, pattern bolt boring, and thread tapping prior to executing the final anodizing chemical wash. This precise technical sequence wraps every freshly machined internal edge and tapped thread hole inside a matching protective oxide coating, stopping filiform corrosion threats before they start.

Precision Aluminum Manufacturing & Custom OEM/ODM Services

Expert in Aluminum Extrusion, Deep Processing, and Finished Products.

OEM & ODM aluminum extrusion manufacturing capabilities from Jiju Aluminium
