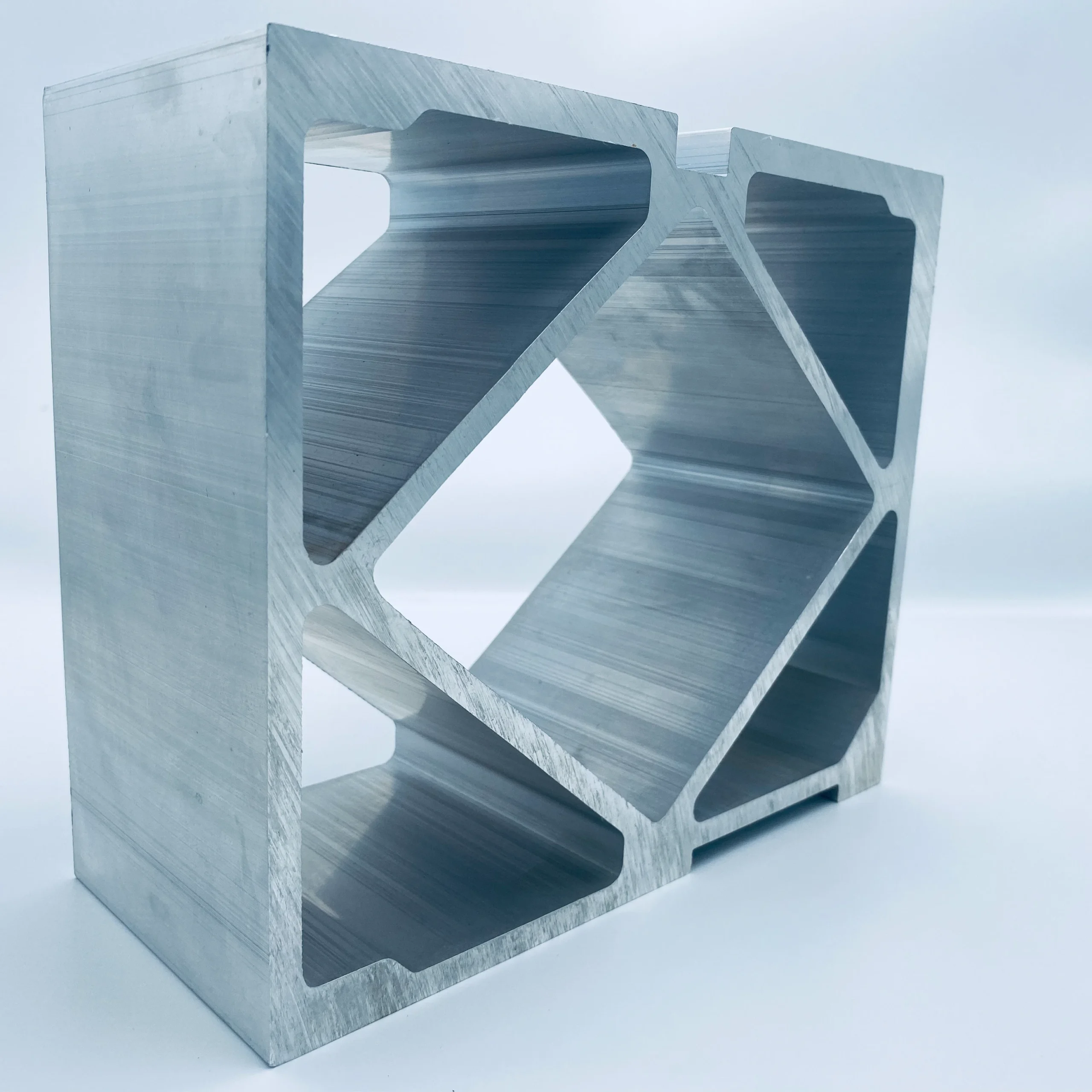

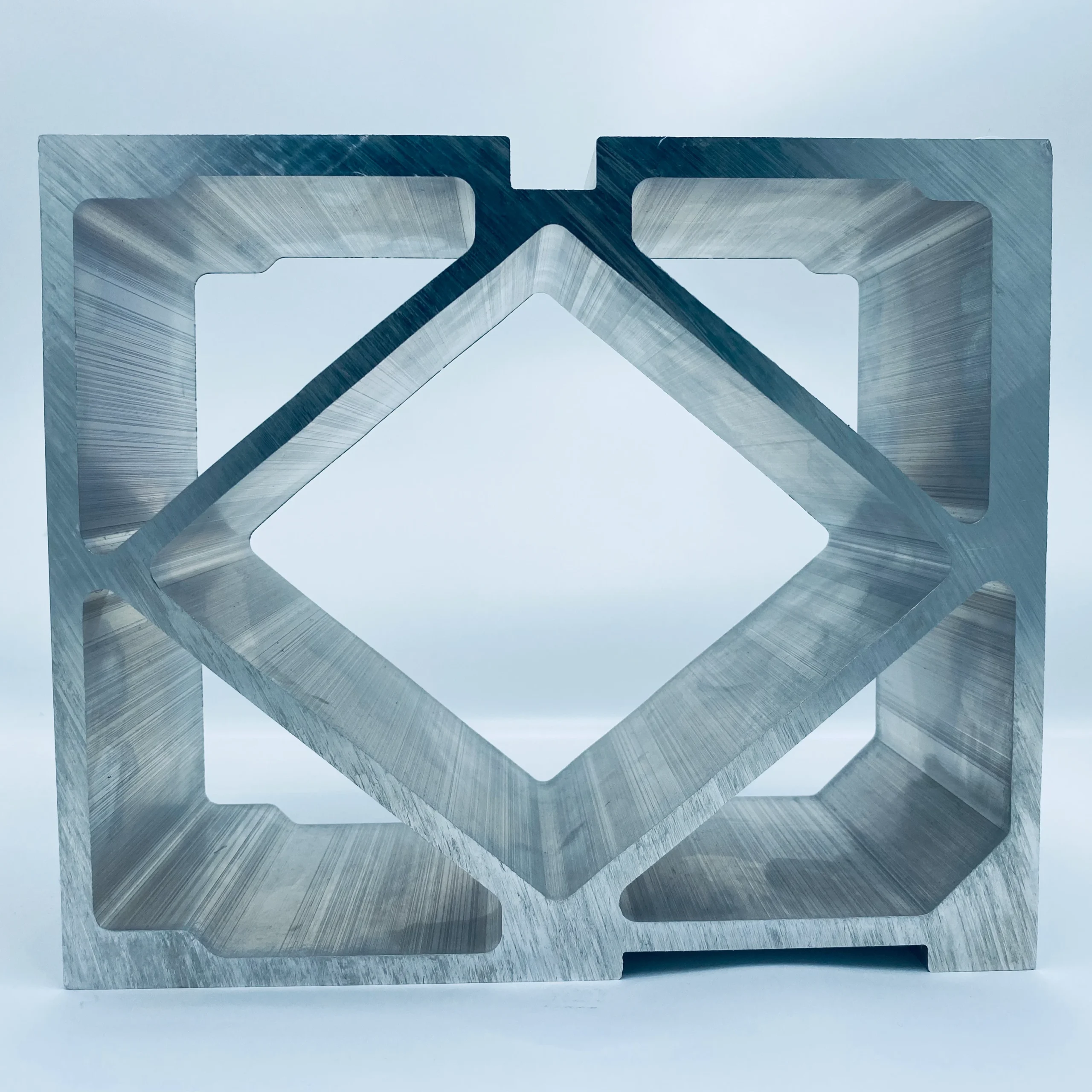

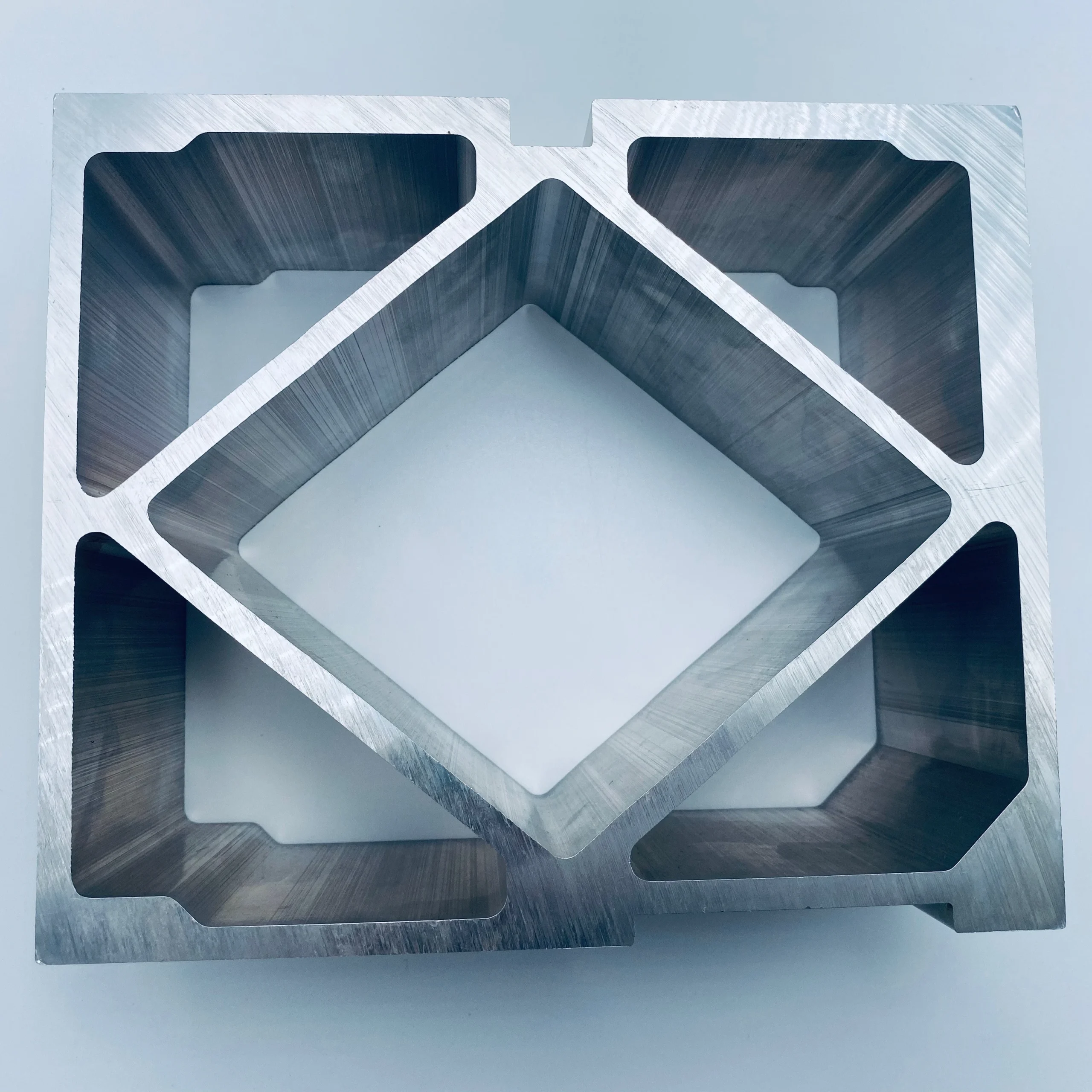

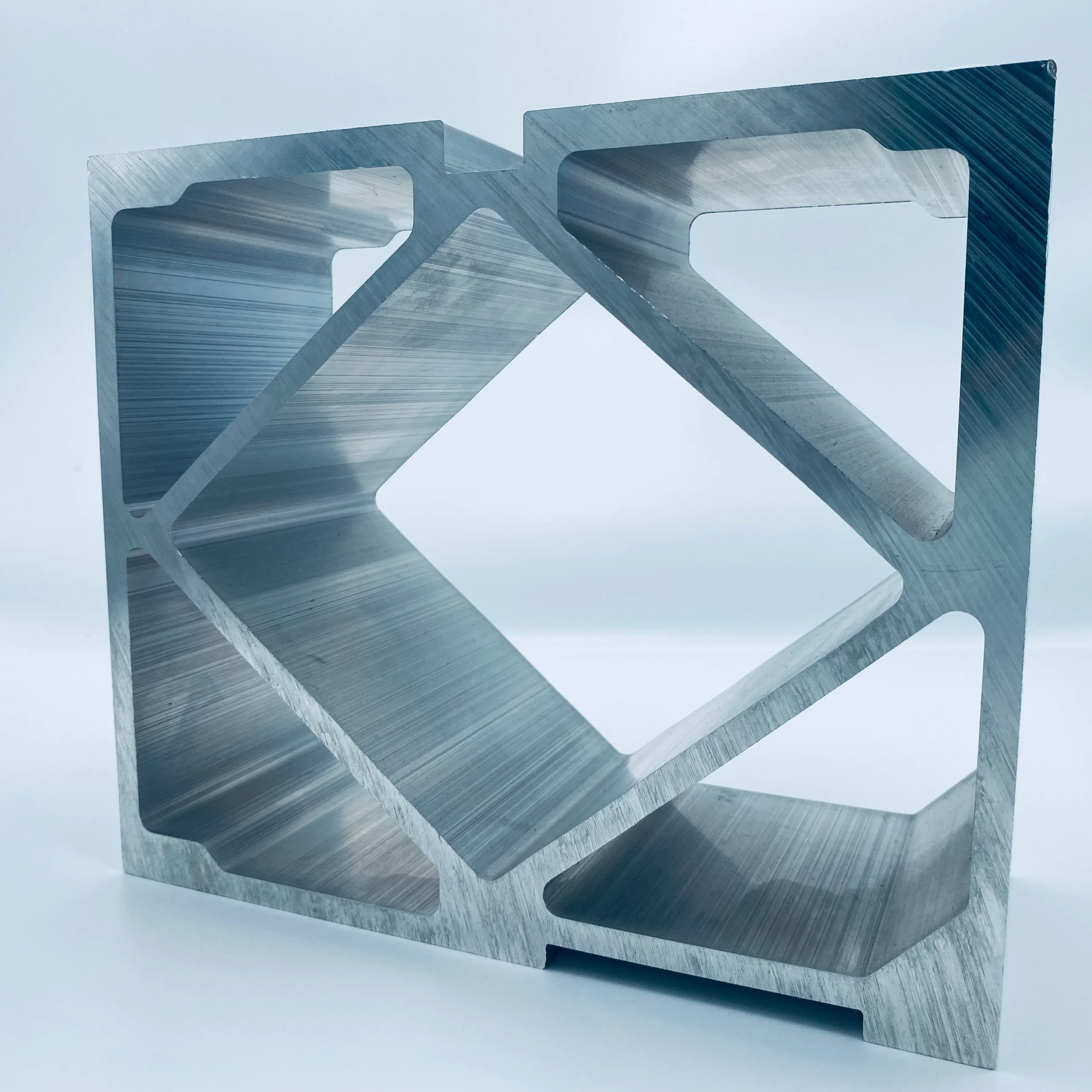

Q1: What mechanical design parameters dictate switching from standard profiles to custom beam aluminium profiles?
A1: Standard catalogs often lack profiles with the necessary cross-sectional area, moments of inertia, or specific flange geometries required to sustain massive bending moments over wide spans. Custom extrusion profiles allow us to add concentrated wall thickness exactly where the highest stress metrics occur (such as the outer flanges of an H-beam), while reducing metal volume in low-stress zones to achieve an optimized strength-to-weight layout.
Q2: Why are structural alloys like 6061-T6 or 6082-T6 highly integrated into heavy-load beam applications over 6063?
A2: While 6063 is an exceptional alloy for complex thin-walled architectural trim or window frames due to its smooth surface quality, it lacks the raw strength for structural load bearing. 6061-T6 and 6082-T6 alloys feature significantly higher yield and ultimate tensile strengths, combined with excellent fracture toughness parameters, ensuring the beam can withstand substantial vertical deflections and dynamic vibrations safely.
Q3: How do your production lines control longitudinal straightness and twisting tolerances over long structural spans?
A3: Heavy beams with asymmetrical cross-sections can experience non-uniform cooling rates, which creates internal residual stresses that cause bowing or twisting. We prevent this by processing every custom beam batch through multi-stage hydraulic tension-stretching systems directly following the online heat-quenching line. This process balances underlying metallurgical grains perfectly, keeping straightness parameters tightly within international structural codes.
Q4: Do you support heavy CNC deep processing like multi-angle miter cuts, anchor slot routing, and deep blind-hole tapping?
A4: Yes, we provide full B2B deep processing support on specialized long-bed CNC machining centers. We can supply your heavy structural profiles pre-cut to exact millimeter specifications with clean deburred edges, pre-milled mounting pockets for connection plates, or deep bored hole patterns matching your blueprints, enabling immediate bolt-together field assembly out of the box.
