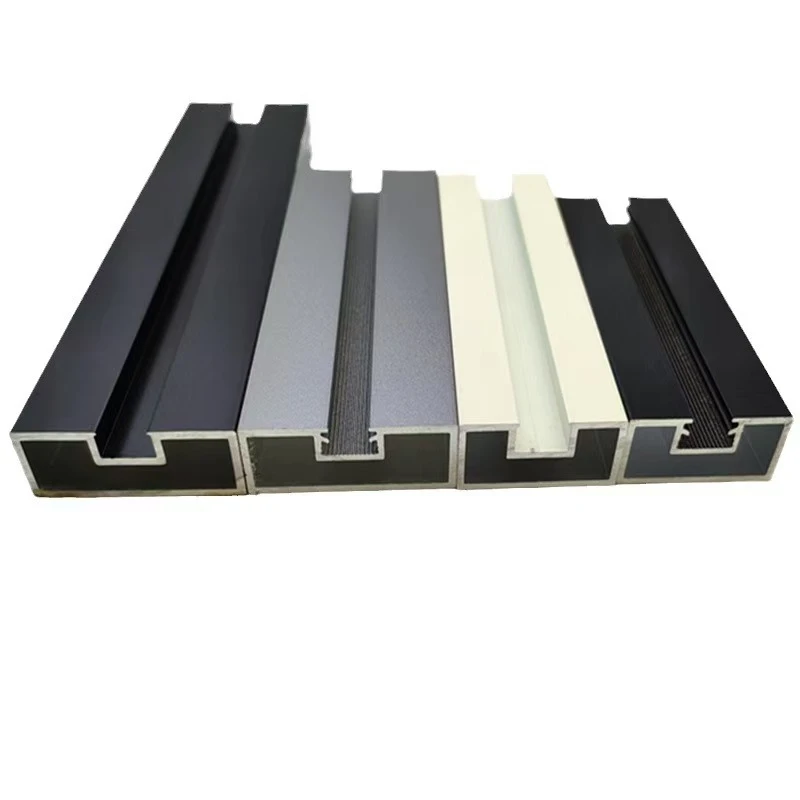

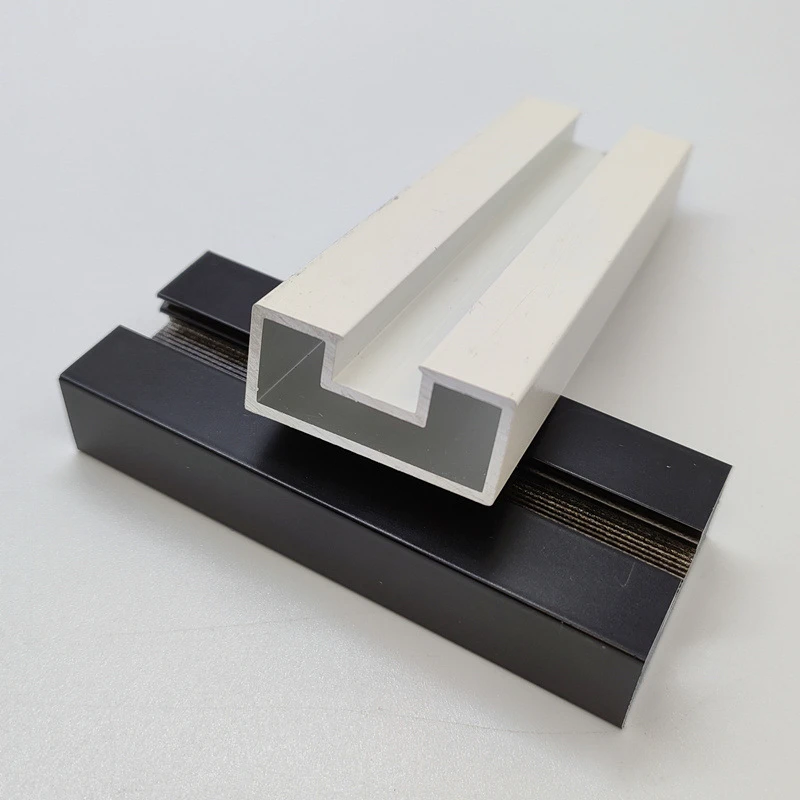

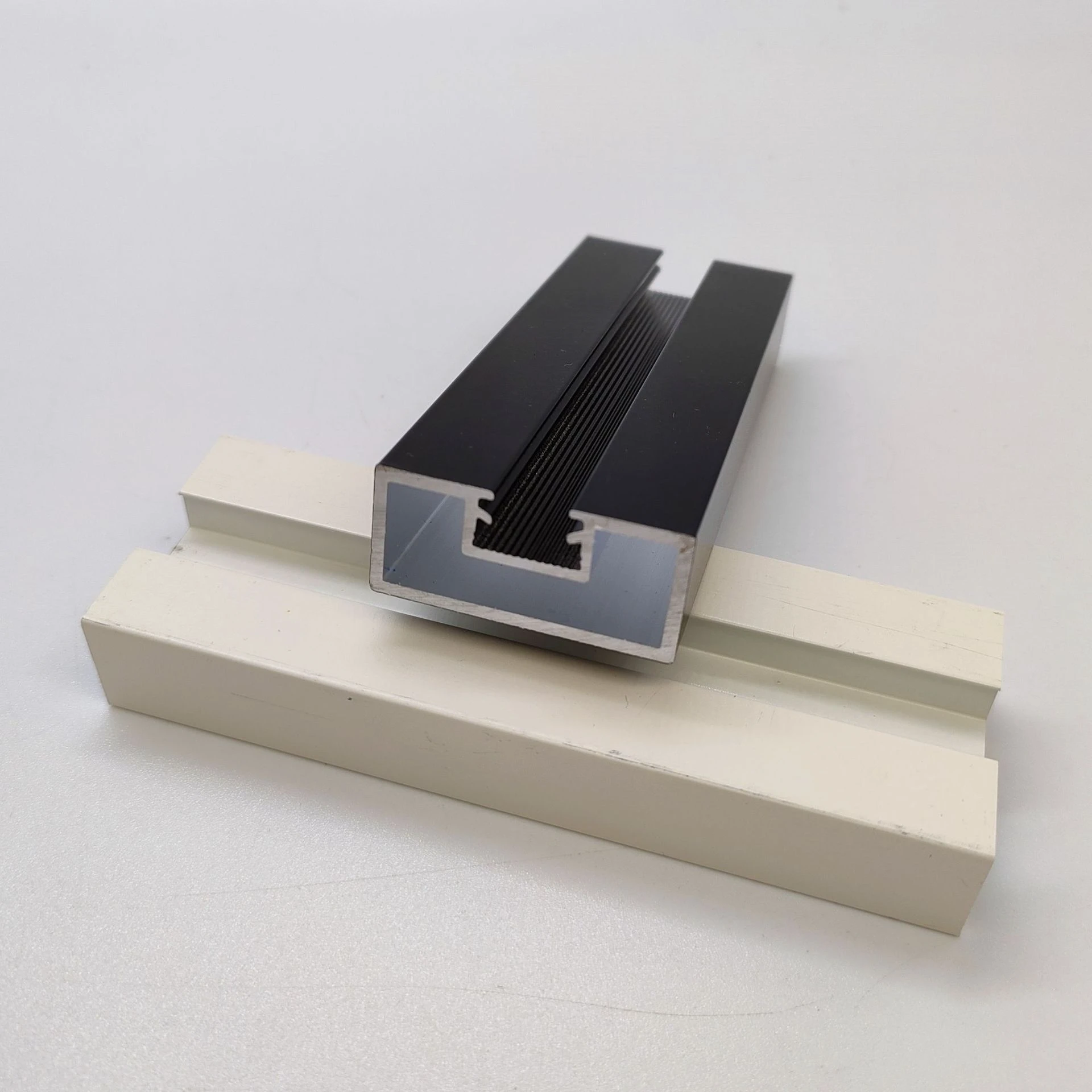

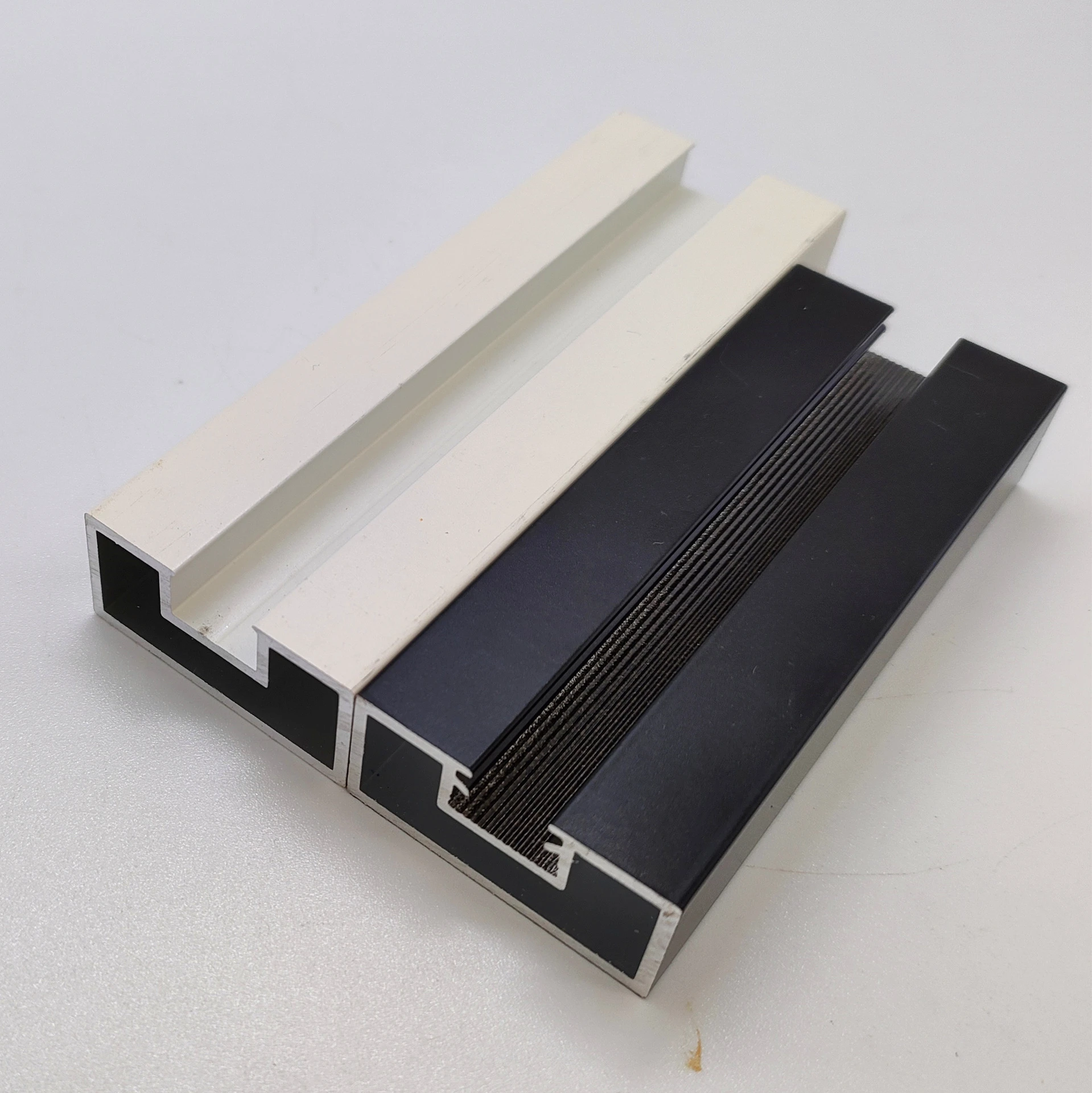

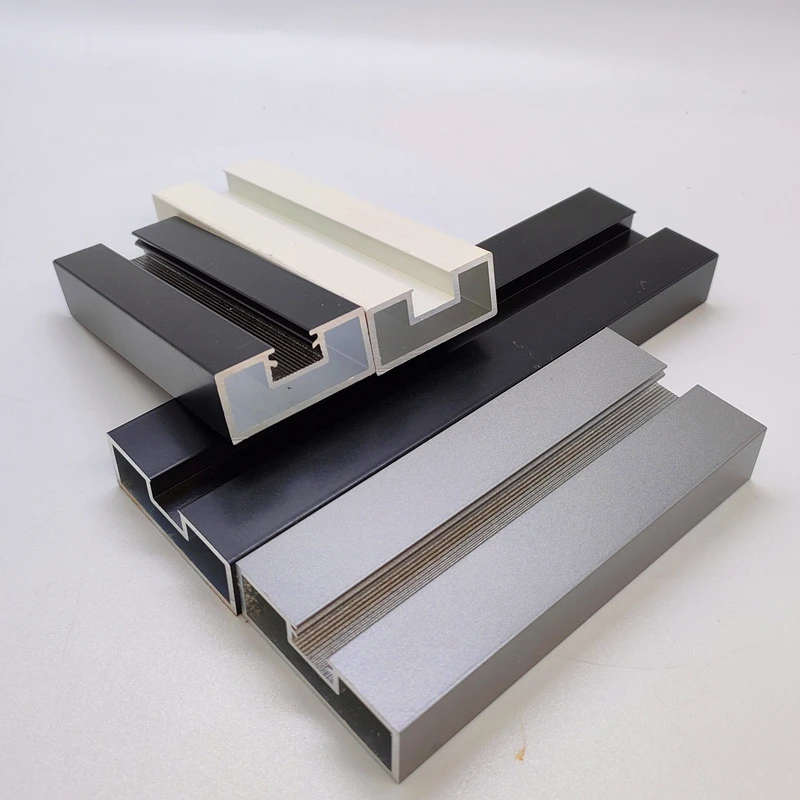

Flat door sliding door aluminum alloy door frame aluminum profile
Key Specifications & Parameters
| Parameter | Specification / Options |
|---|---|
| Product Name | Flat Door Sliding Door Aluminum Alloy Door Frame Aluminum Profile |
| Material Grade | 6063-T5, 6061-T6, 6463-T5 (High-surface-quality architectural alloy) |
| Profile Configurations | Flat Casement Door Jambs, Multi-track Sliding Rails, Pocket Door Headers, Hidden Frame Profiles |
| Wall Thickness | 1.6mm – 3.0mm (Heavy-duty reinforced parameters for high-traffic door tracking) |
| Surface Finish | AkzoNobel Powder Coating, Sandblast Anodized (Silver, Bronze, Matte Black), Brushed Metallic Finish |
| Deep Processing | Precision 45-Degree Angular Mitering, Lock Body Cavity Milling, Hinge Notch Punching, Screw Entry Drilling |
| Slot Alignment Compatibility | Engineered for standard heavy-duty EPDM weather stripping and premium roller hardware assemblies |
| Custom Service | Full OEM/ODM mold engineering based on custom architectural cross-section files |
Product Applications
- Minimalist Sliding Patio Doors: Ultra-slim multi-track interlocking frames designed for large-panel double or triple glazing patio sliding glass configurations.
- Heavy-Duty Flat Casement Entrances: High-strength reinforced door frame jambs supporting large-span swing doors, kitchen doors, and balcony flat entryways.
- Hidden Frame Interior Doors: Specialized flush-mount hidden wall frame profiles creating a completely seamless rimless flat door aesthetic for contemporary office spaces and villas.
- Commercial Shopfront Dividers: Heavy-traffic automated sliding door tracks and perimeter framing structures for retail entries, hotel lobbies, and premium corporate partitions.
Product FAQ
Q1: What are the main benefits of using thick-walled aluminum extrusions for high-end sliding door frames?
A1: Large sliding glass panels exert immense localized weight on the frame tracking. Extruded aluminum profiles with reinforced wall thicknesses (up to 2.0mm or 3.0mm) provide the required structural moment of inertia. This prevents the header or sill rails from bowing over time, ensuring rollers continue to slide smoothly without catching or binding.
Q2: Can your door frames handle hidden multi-point locking hardware integration?
A2: Yes. Our profile geometries include dedicated internal cavity dimensions and hardware slots designed to accommodate standard European and global hardware metrics. This enables the direct hidden integration of heavy-duty multi-point security locks, flush bolts, and premium soft-closing sliding mechanisms seamlessly.
Q3: Which surface finish is recommended for maintaining scratch-free wear along sliding door tracks?
A3: For the actual rolling or contact surfaces, a high-grade anodized finish is highly recommended due to its ceramic-like surface hardness, which minimizes roller friction marks. For the outer aesthetic frame channels, an architectural-grade AkzoNobel powder coating provides exceptional impact endurance and premium color matching.
Q4: Do you offer pre-machined frame components ready for localized assembly lines?
A4: Absolutely. We offer comprehensive B2B deep processing. We can deliver your flat and sliding door profiles pre-cut at precision 45-degree corner angles, complete with pre-milled hinge pockets, lockbox cutouts, and drainage weep pathways to maximize your factory assembly line throughput.
