LEADING CUSTOM ALUMINUMEXTRUSION MANUFACTURER
From mold design to precision CNC machining and surface treatment.
Providing one-stop aluminum profile solutions with 30 years of industry expertise.

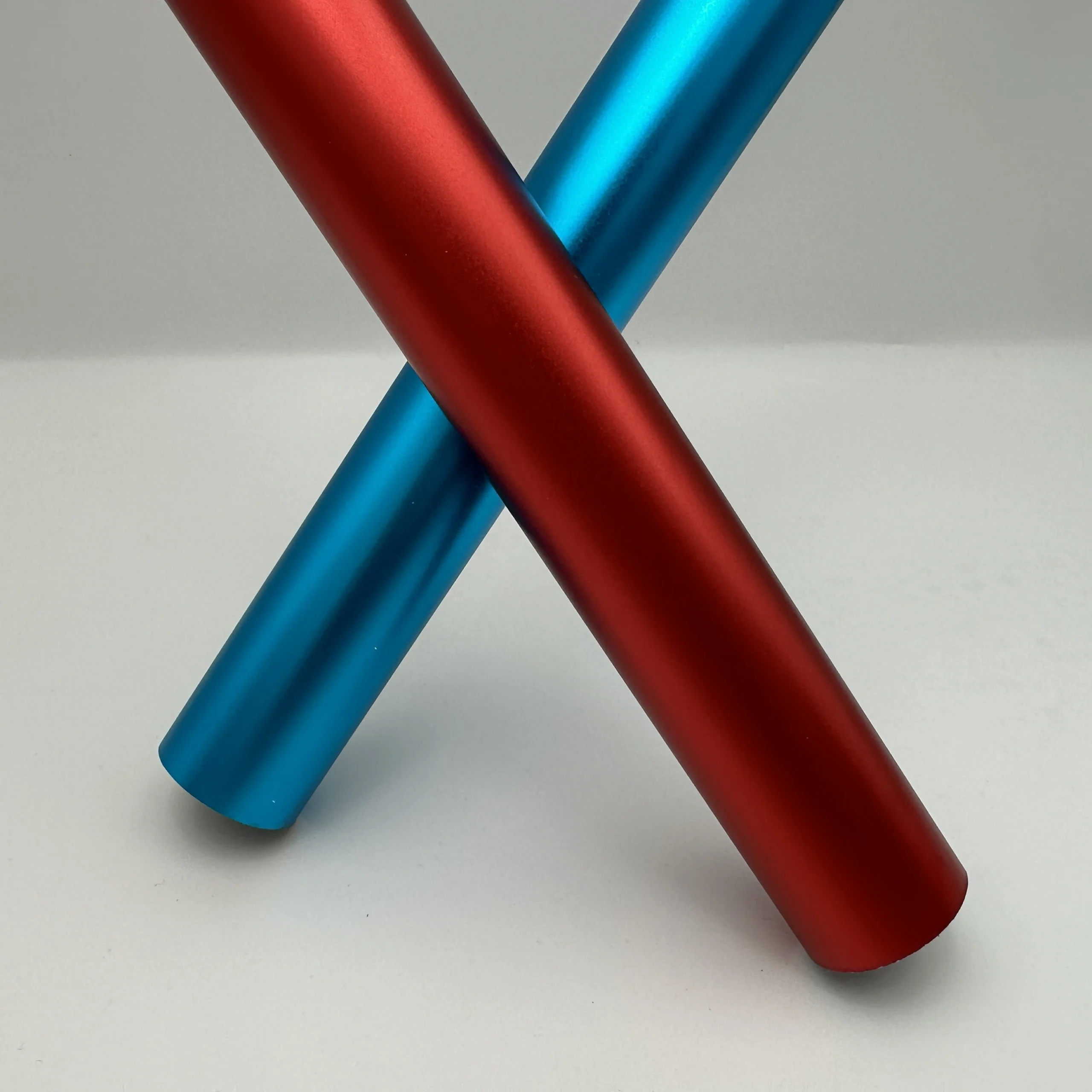

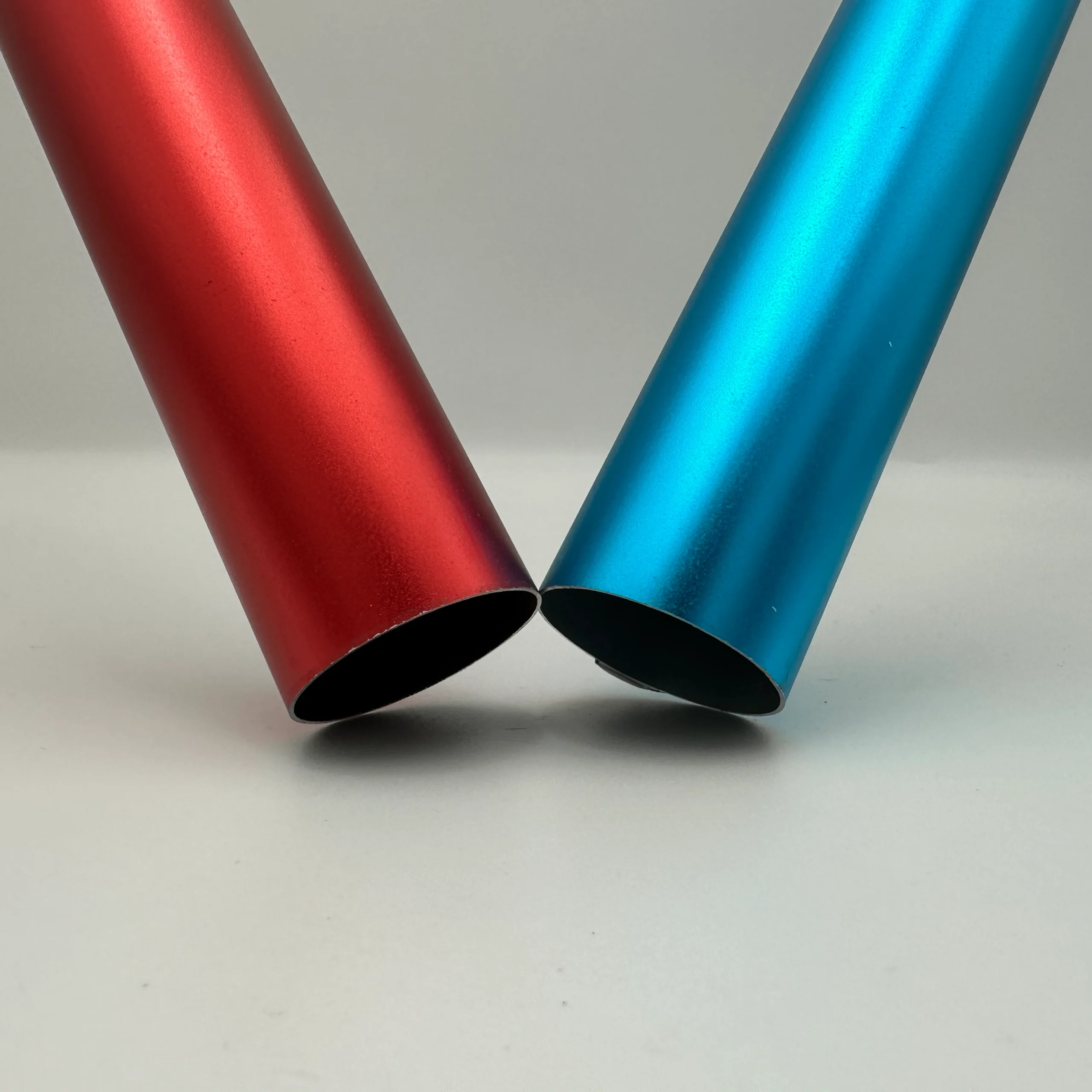

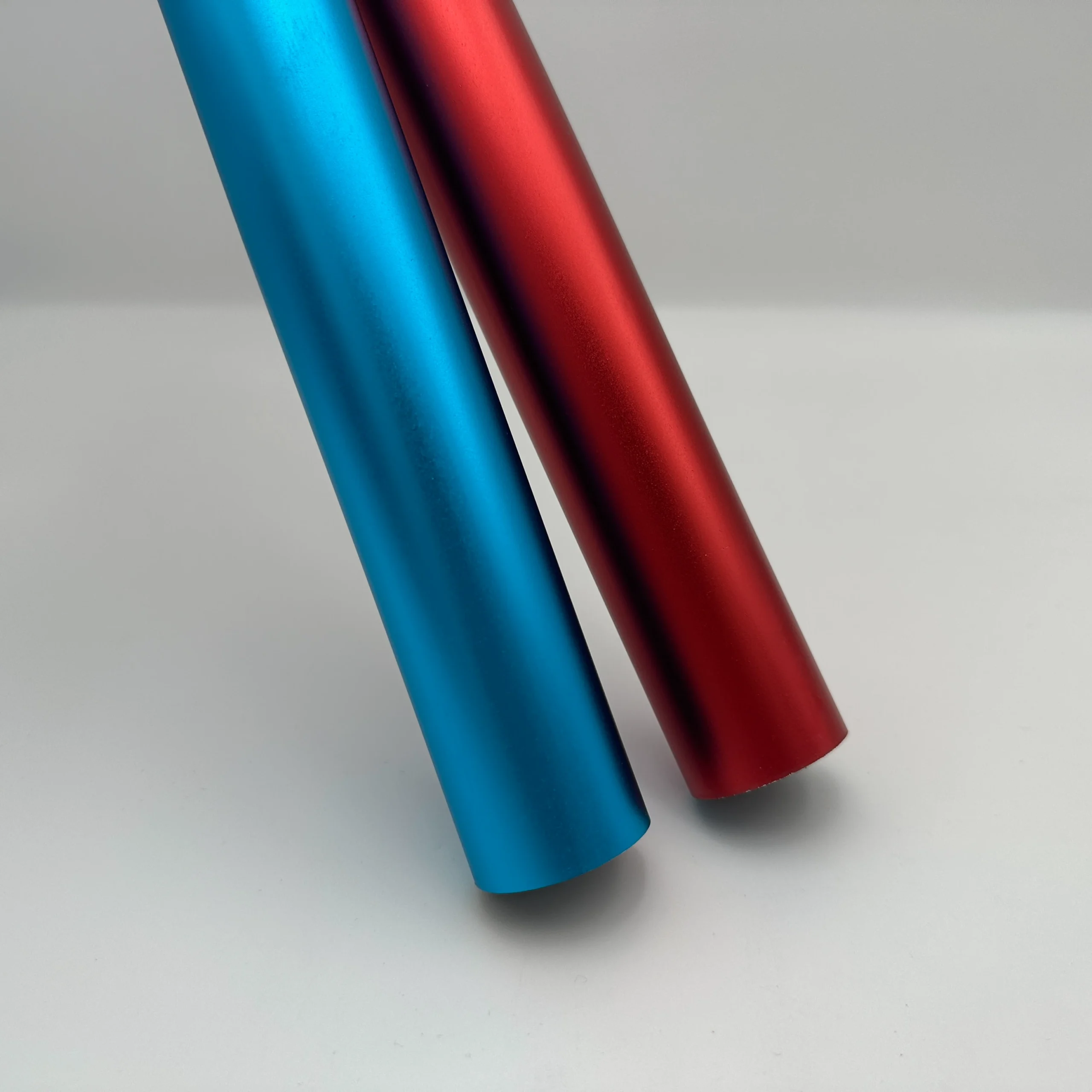

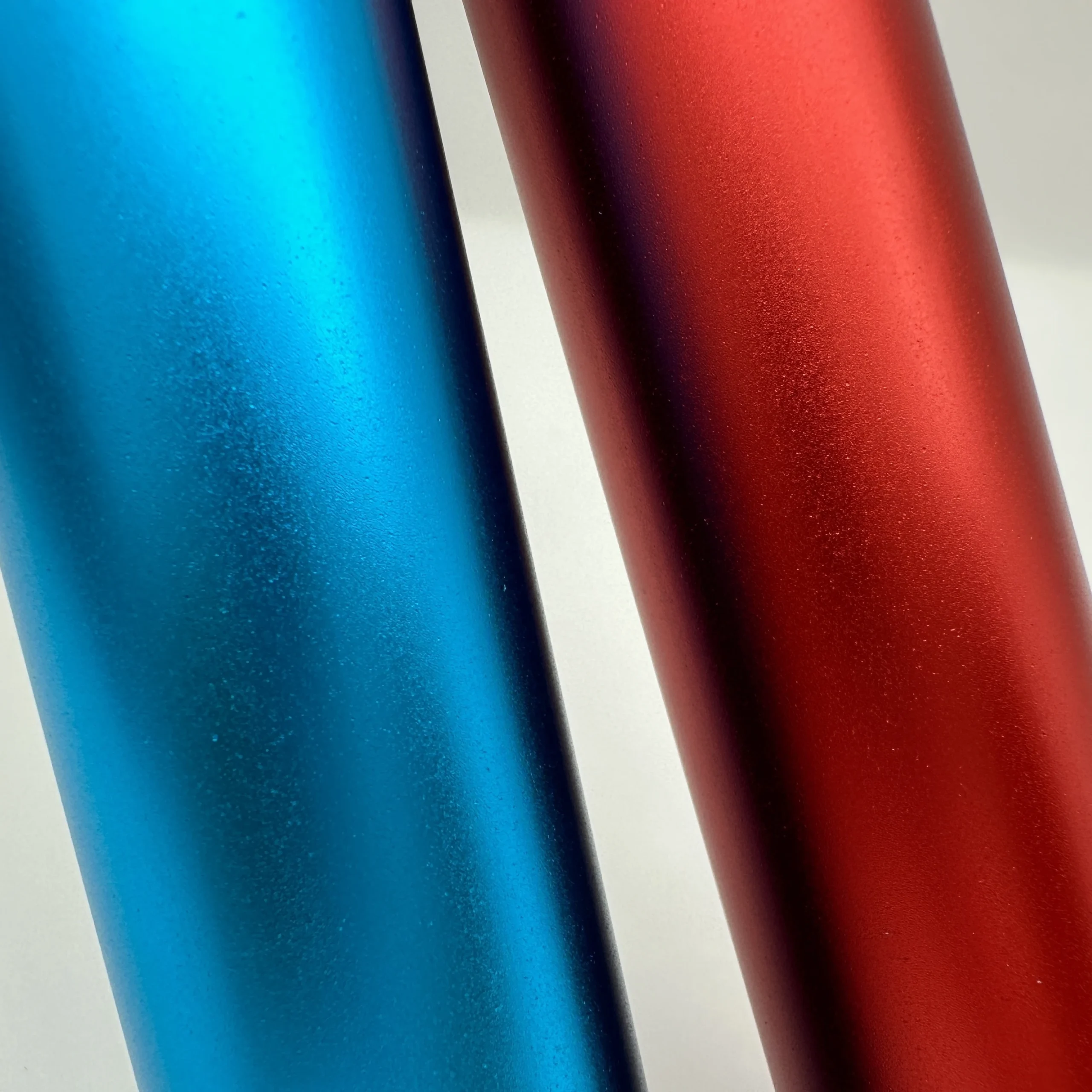

Sand Blast Oxidation Aluminium Profiles
Key Specifications & Technical Parameters
| Key Parameter | Specification & Options |
|---|---|
| Product Name | Sand Blast Oxidation Aluminium Profiles / Anodized Sections |
| Material Grade | 6063-T5, 6063-T6, 6061-T6 (High-precision structural engineering alloys) |
| Hardware Coupling | Standard alignment joints, anchor bracket units, and assembly screws unified in 304 stainless steel |
| Blasting Media Specs | Calibrated #100 Glass Beads, #120 Fine Ceramic Spheres, Coarse Corundum Matrix Options |
| Anodizing Film Depth | Class AA10 (≥10um) up to Class AA20 (≥20um) matching strict international structural benchmarks |
| Surface Sheen Texture | Fine Satin Matte Finish, Velvet Non-Reflective Coating, Coarse Industrial Friction Topography |
| Dimensional Tolerance | Strict compliance with high-precision global metrics (tolerances held up to ±0.15mm) |
| Deep Machining Capability | CNC precise length sawing, interlocking slot routing, precision component boring, thread tapping |
Target Product Applications
- Automated Machinery Frameworks: Premium modular machine enclosure channels, conveyor guide tracks, electronic workstation framing, and robotic cell safety grilles.
- High-End Architectural Finishes: Decorative office glass partitions, luxury linear window mullion rails, suspended ceiling baffle boards, and storefront threshold plates.
- Electronic Enclosure Assemblies: Anti-glare cooling instrument housings, server rack mounting rails, power distribution chassis trims, and optoelectronic equipment plates.
Comprehensive Technical FAQ
### Surface Levelling Mechanical Principles
Q1: How does the mechanical sandblasting process mask extrusion lines and surface defects prior to chemical oxidation?
A1: Raw aluminum profiles naturally exit extrusion press dies with longitudinal line patterns and minor handling scrapes that direct electrochemical oxidation lines actually emphasize. Therefore, our processing workshop subjects the metal components to high-velocity stream bombardments using calibrated #120 glass beads first. This aggressive impact induces localized plastic micro-deformation to level out high ridges and low scratches uniformly. Consequently, the metal surface achieves a pristine, diffuse micro-crater topography that guarantees an immaculate satin texture.
### Electrochemical Oxidation Protection
Q2: What operational benefits make subsequent electrochemical oxidation critical for sandblasted structural sections?
A2: Unprotected sandblasted profiles possess an expanded surface area that remains highly vulnerable to greasy fingerprint stains, airborne contaminants, and rapid atmospheric oxidation. Consequently, our production facility transitions the pretreated components straight into automated anodizing acid baths to grow a tightly integrated transparent ceramic protective shell layer. This hard oxide layer encapsulates the micro-peened skin securely. As a result, the hardened finish prevents chemical corrosion threats and stops raw aluminum dusting indicators completely.
### Color Consistency Over Bulk Batches
Q3: How do your quality control tracking parameters guarantee absolute gloss uniformity across large high-volume orders?
A3: Inconsistent blasting air pressures or variations in chemical solution current densities will trigger prominent gloss fluctuations and patchy patterns across adjacent structural sections. Therefore, our automated line utilizes CNC motorized spray nozzles to regulate blast velocity and angle parameters precisely. Furthermore, we extract all custom batches from identical alloy billet sequences to preserve a unified chemical reaction base. Consequently, our lab verification tools ensure uniform matte matching across your entire installation layout.
### Post Coating Deep Machining Methods
Q4: Can your precision processing line execute heavy saw cutting and thread drilling on finished profiles without chipping the satin edges?
A4: Low-grade chemical rinsing leaves brittle salt deposits that chip or fracture easily under high-speed milling cutter tool impacts. Therefore, we integrate thorough high-temperature deionized water sealing washes to lock the porous boundary layer into a flexible, solid matrix. This meticulous conditioning ensures exceptional structural elasticity across the outer skin. As a result, our long-bed CNC machinery can execute pristine miter saw cuts and slot punching flawlessly with zero edge flaking.
Precision Aluminum Manufacturing & Custom OEM/ODM Services
Expert in Aluminum Extrusion, Deep Processing, and Finished Products.
