Spraying
Key Specifications & Parameters
| Parameter | Specification / Options |
|---|---|

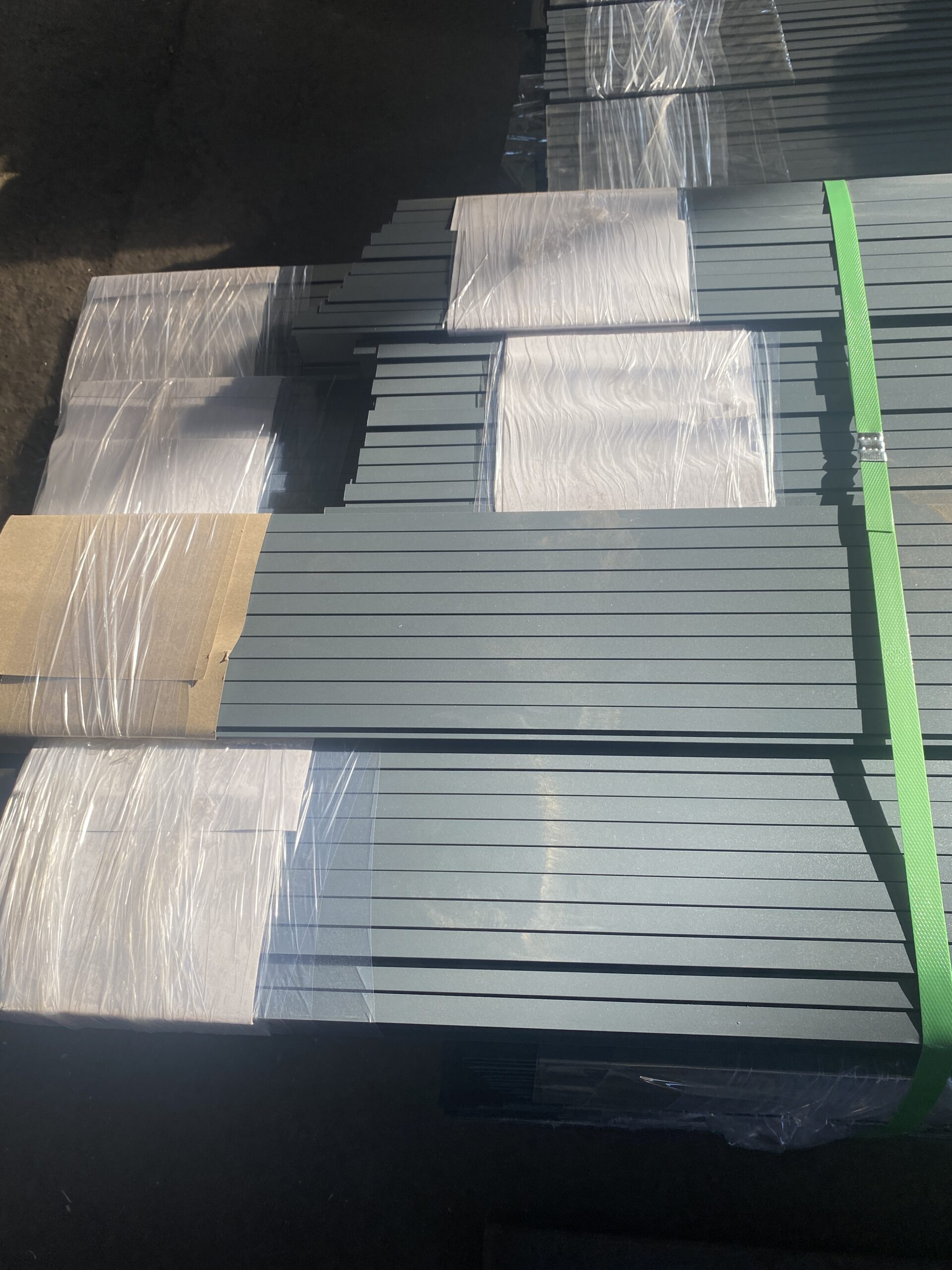

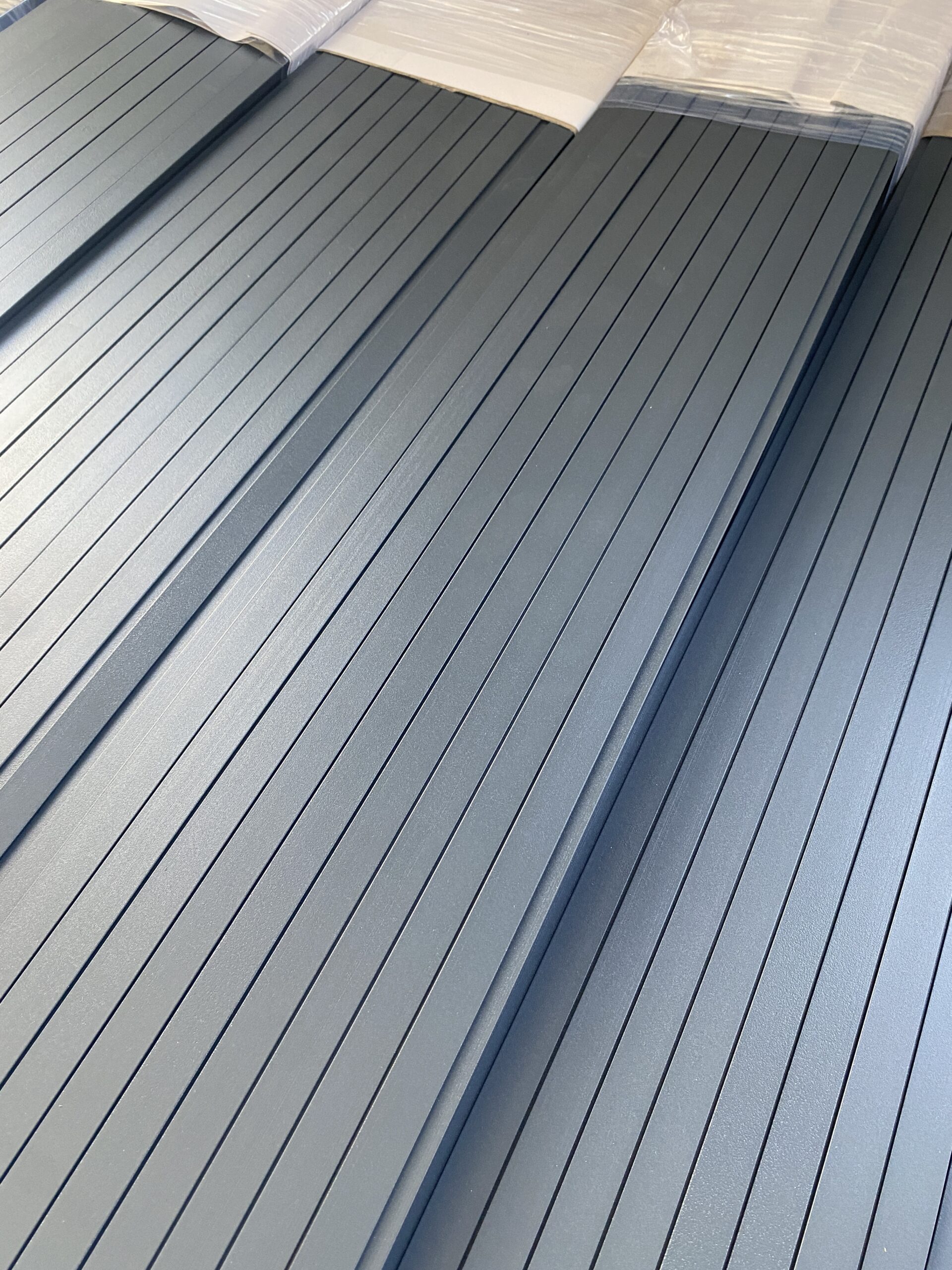

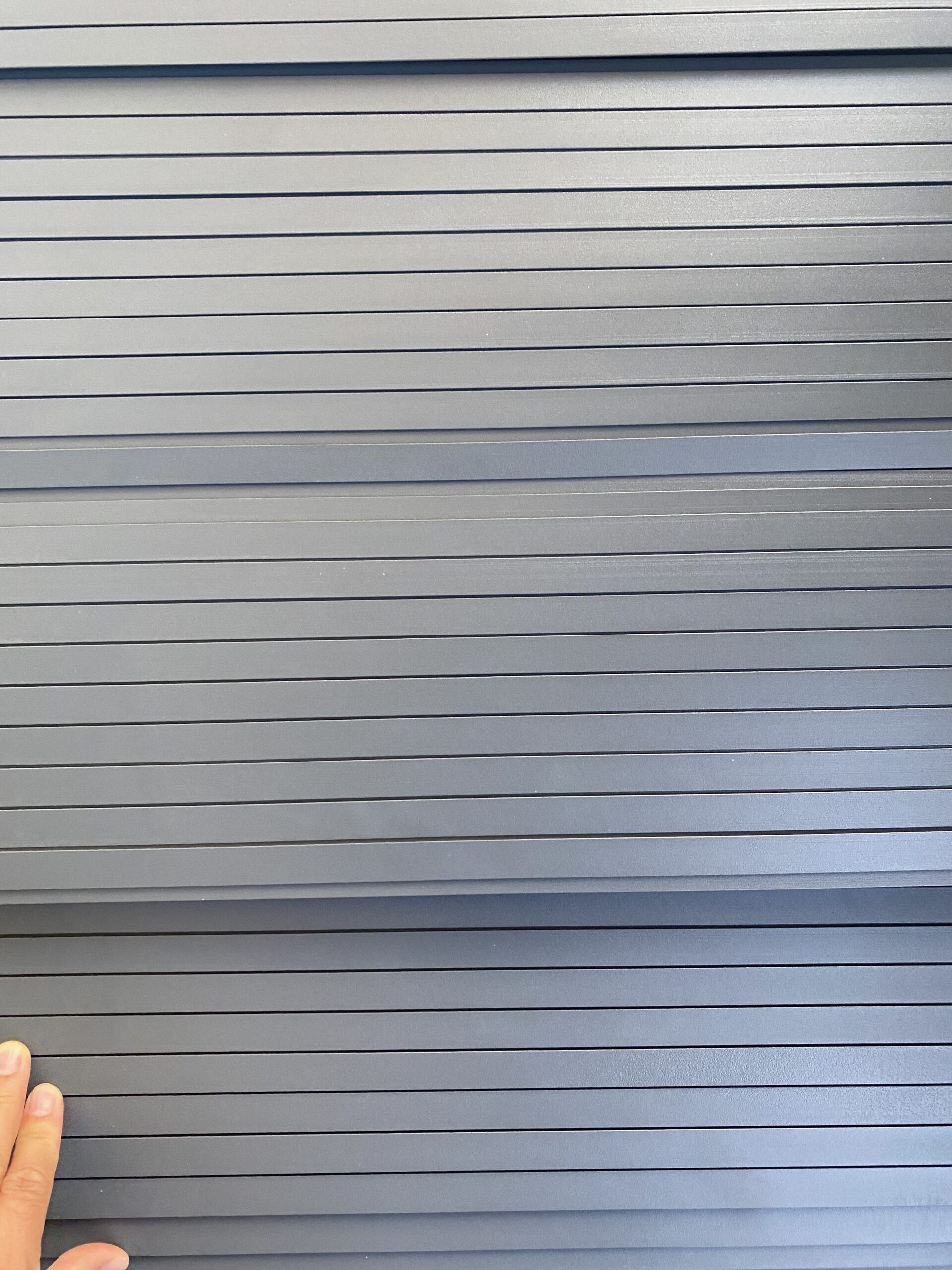

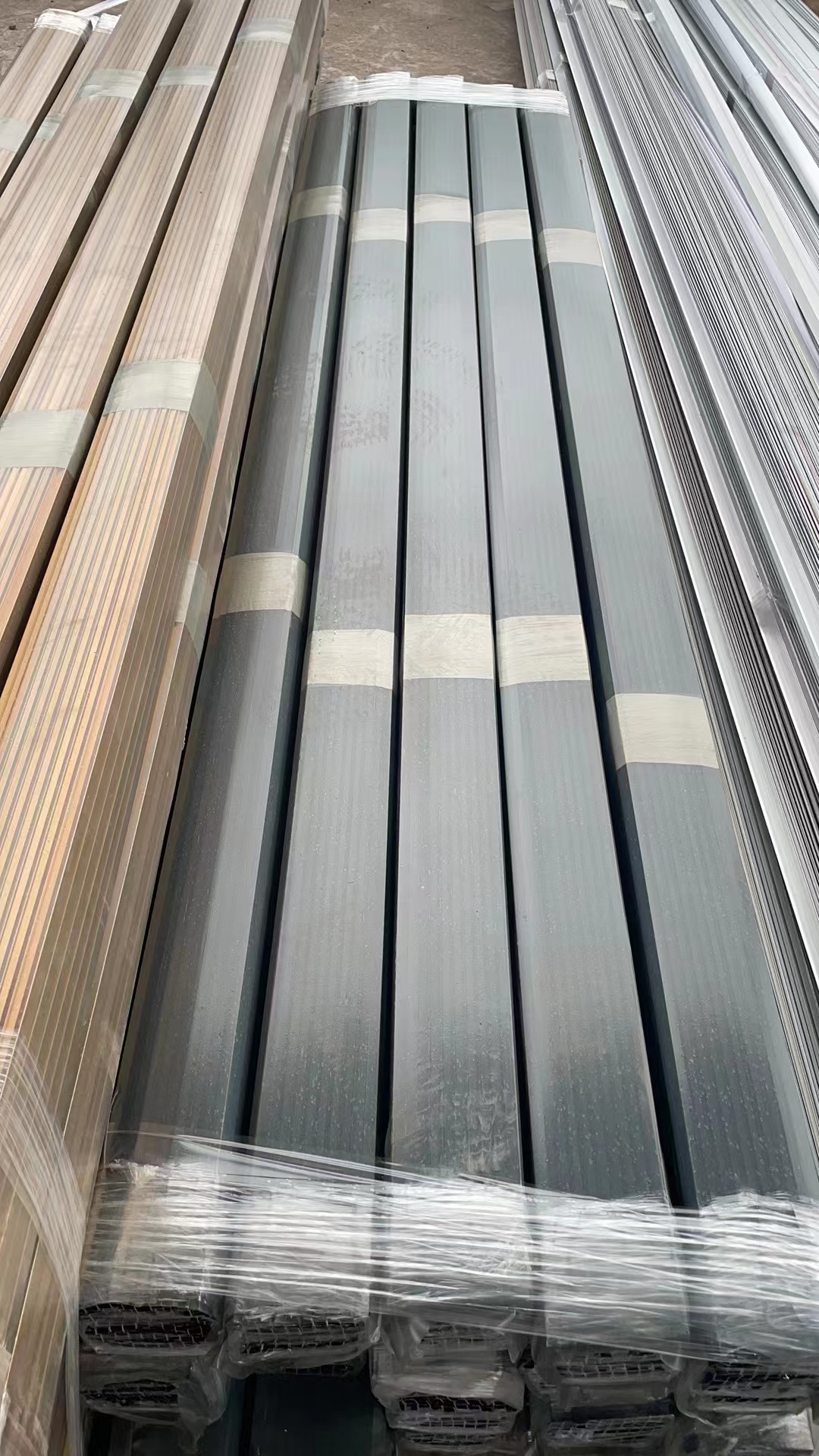

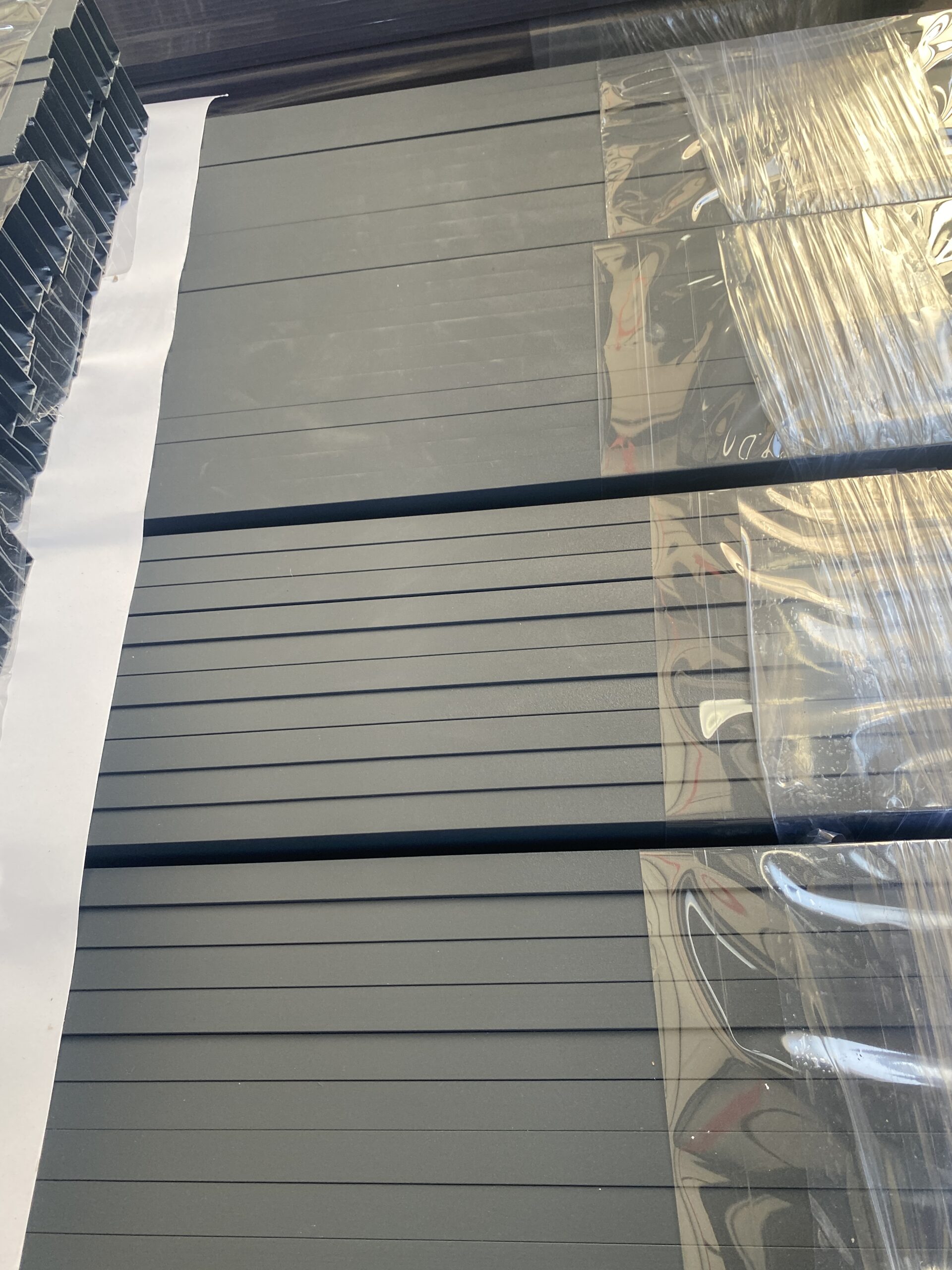

| Product Name | Premium Electrostatic Spraying Powder Coated Aluminum Profiles |
| Material Grade | 6063-T5, 6063-T6, 6061-T6 Structural Aluminum Alloys |
| Coating Method | Automated Electrostatic Powder Spraying, Fluorocarbon (PVDF) Liquid Spraying |
| Coating Thickness | 60 – 120 microns (Fully conforming to international quality codes) |
| Color Options | Full RAL and Pantone Color Charts, Custom Match Samples Supported |
| Surface Gloss/Texture | High Gloss, Semi-Gloss, Matt, Fine Sand-Grain, Metallic Flake Coating |
| Quality Certifications | Qualicoat Class 1/Class 2, AAMA 2604/2605 Architectural Standards |
| Deep Processing | CNC Precise Milling, Punching, Thread Tapping, Laser Cutting, Miter Sawing |
Product Applications
- Architectural Windows & Doors: Premium framing extrusions finished in high-demand architectural colors for modern residential complexes and commercial spaces.
- Exterior Curtain Walls & Louvers: Large structural mullions, external cladding borders, and ventilation slats requiring absolute batch-to-batch color consistency.
- Outdoor Construction & Sunrooms: Heavy-duty structural frameworks for aluminum pergolas, balcony railings, patio fences, and carport tracks.
- Industrial Modular Machinery: High-visibility or customized protective machine enclosures, electronic equipment racking channels, and specialized cleanroom tracks.
Product FAQ
Q1: What is the benefit of automated electrostatic spraying compared to traditional wet spray painting?
A1: Electrostatic powder spraying delivers a much thicker, completely uniform layer (typically 60-80 microns) with perfect wraparound coverage on complex geometric profiles. It uses no liquid solvents, eliminating volatile organic compounds (VOCs). The resulting finish is significantly tougher, offering vastly higher resistance to impact chipping, abrasion, and cracking.
Q2: How does your factory ensure the spraying finish will not peel or flake in high-humidity areas?
A2: Adherence is deeply rooted in pre-treatment. Before entering our automated vertical spraying lines, every extrusion undergoes a strict multi-stage washing, de-greasing, and chromate-free chemical conversion coating process. This thoroughly strips surface impurities and creates a microscopic bonding layer that guarantees cross-hatch paint adhesion metrics matching Qualicoat standards.
Q3: For hyper-severe environments like coastal zones, what spraying option do you recommend?
A3: For architectural structures facing continuous marine salt spray, harsh industrial air, or extreme tropical UV indexes, we highly recommend our premium Fluorocarbon (PVDF) spraying or Qualicoat Class 2/Class 3 super-durable powder options. These chemical structures are specifically engineered to provide enhanced weather resistance and maintain gloss integrity for 20+ years.
Q4: Can we supply a custom color code from our proprietary branding scheme for matching?
A4: Yes, absolutely. Beyond our vast inventory of standard international RAL and Pantone shade codes, we operate a precise lab color-matching service. You can send a physical colored plastic or metal master swatch to our technical group, and we will formulate the coating matrix to guarantee an identical color match before initiating bulk production.
